Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 76115558
Ceratizit Material Number: 11696393
Product discontinued! Unavailable if out of stock.
The replacement OEM part number is 7611555801, use this number in the product search or:
Please contact us for details on the replacement for this item.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

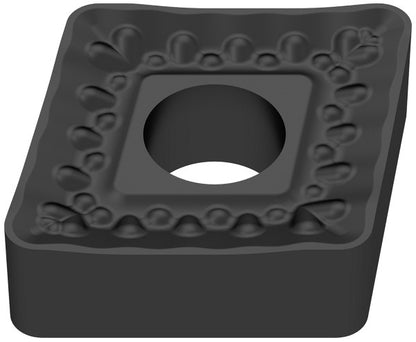

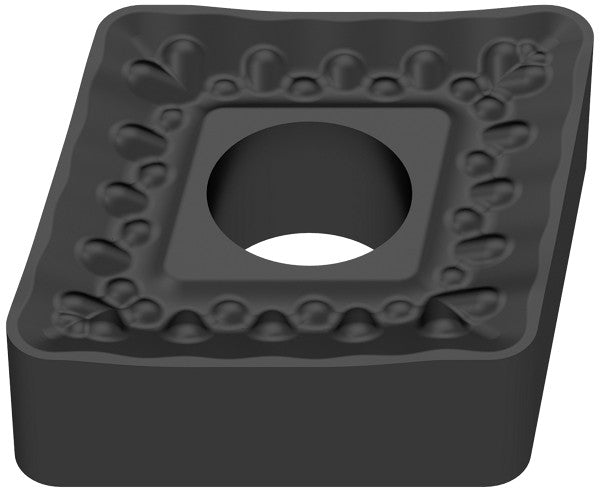

| Name | Ceratizit CNMM 190616EN-R58 CTCP125 76115558 | |
| EDP # | 0713930 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 24.2 g |
| designation | 190616EN | |
| Corner radius / RE | 0.0630' | 1.600 mm |
| Cutting edge length / L | 0.7598' | 19.300 mm |
| Insert thickness / S | 0.2500' | 6.350 mm |
| Fixing hole diameter / D1 | 0.3126' | 7.940 mm |
| Inscribed circle diameter / IC | 0.7500' | 19.050 mm |
| Chip breaker (Ceratizit) / CBMD | -R58 | |
| Coating name / Grade (Ceratizit) / COATN | CTCP125 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
