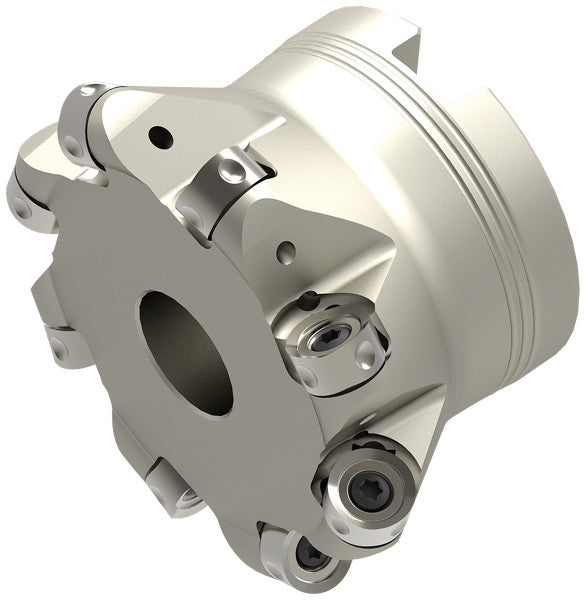

Ceratizit A252.300.R.07-12-A100-200-EF CoreLine Face Mills 5868930007 (0713976)
Ceratizit A252.300.R.07-12-A100-200-EF CoreLine Face Mills 5868930007 (0713976)
Couldn't load pickup availability
Ceratizit Article Number: 5868930007
Ceratizit Material Number: 11709046
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

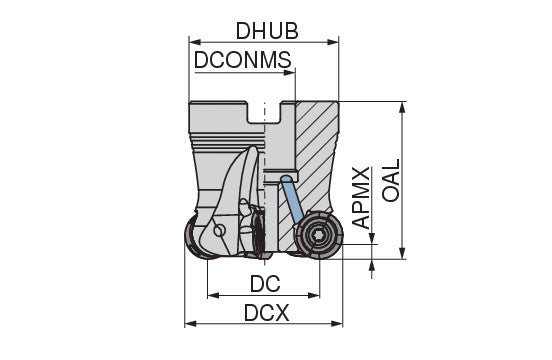

| Properties | ||
|---|---|---|
| Name | Ceratizit A252.300.R.07-12-A100-200-EF CoreLine Face Mills 5868930007 | |
| EDP # | 0713976 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 33.0 oz | 936 g |
| Productsystem | 252.0000" | 6400.800 mm |
| Machining process - Main Application | Form milling | |
| Cutting diameter maximum / DCX | 3.0000" | 76.200 mm |
| Depth of cut maximum / APMX | 0.1180" | 3.000 mm |
| Face mounted insert count / ZNF | 7 | |
| Cutting diameter / DC | 2.5270" | 64.190 mm |
| Overall length / OAL | 2.2500" | 57.150 mm |
| Hub diameter / DHUB | 2.2500" | 57.150 mm |
| Mounting spigot diameter / DCONMS | 1.0000" | 25.400 mm |
| Rotational speed maximum / RPMX | 7950 1/min. | |
| Insert | RNHU 1205.. | |
| torque moment | 3.2 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
