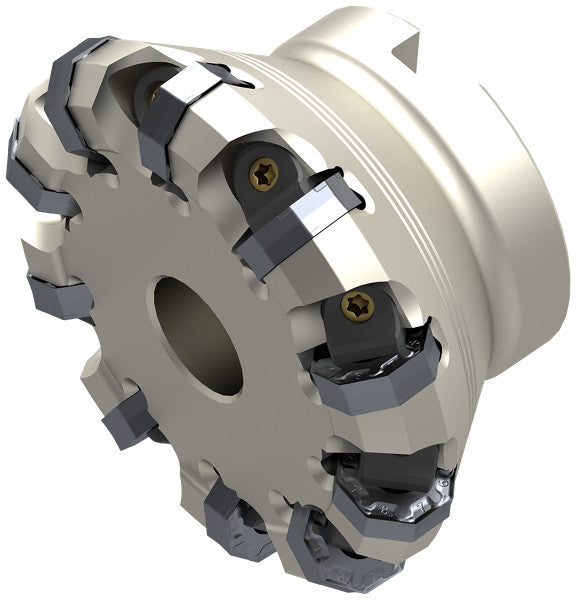

Ceratizit A273.800.R.25-06-C250-250-EF CoreLine Face Mills 273-06 5874180025 (0713980)
Ceratizit A273.800.R.25-06-C250-250-EF CoreLine Face Mills 273-06 5874180025 (0713980)
Couldn't load pickup availability
Ceratizit Article Number: 5874180025
Ceratizit Material Number: 11709054
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit A273.800.R.25-06-C250-250-EF CoreLine Face Mills 273-06 5874180025 | |
| EDP # | 0713980 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Cast Iron (Red) Stainless Steel (Yellow) HiTemp Alloy (Orange) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 311.0 oz | 8813 g |
| Productsystem | 273-06 | |
| Machining process - Main Application | Face milling | |

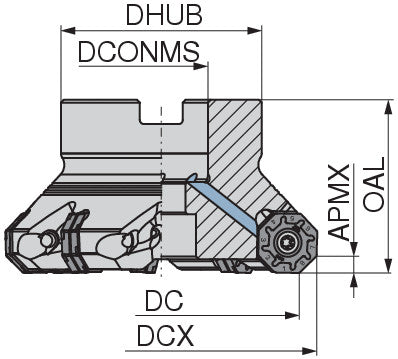

| Depth of cut maximum / APMX | 0.1380" | 3.510 mm |
| Face mounted insert count / ZNF | 25 | |
| Cutting diameter / DC | 8.0000" | 203.200 mm |
| Overall length / OAL | 6.5000" | 165.100 mm |
| Hub diameter / DHUB | 6.5000" | 165.100 mm |
| Mounting spigot diameter / DCONMS H6 | 2.5000" | 63.500 mm |
| Rotational speed maximum / RPMX | 2900 1/min. | |
| torque moment | 5 Nm | |
| Insert | OAKU / XAHT 0605 | |
| Tool cutting edge angle / KAPR | 45 ° | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
