Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 5874110031
Ceratizit Material Number: 11709055
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

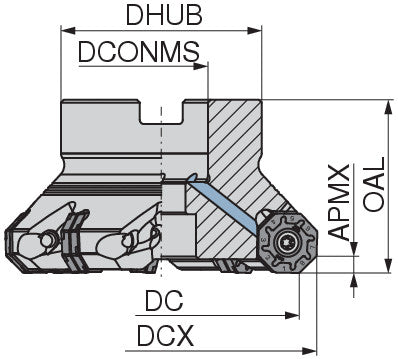

| Properties | ||
|---|---|---|

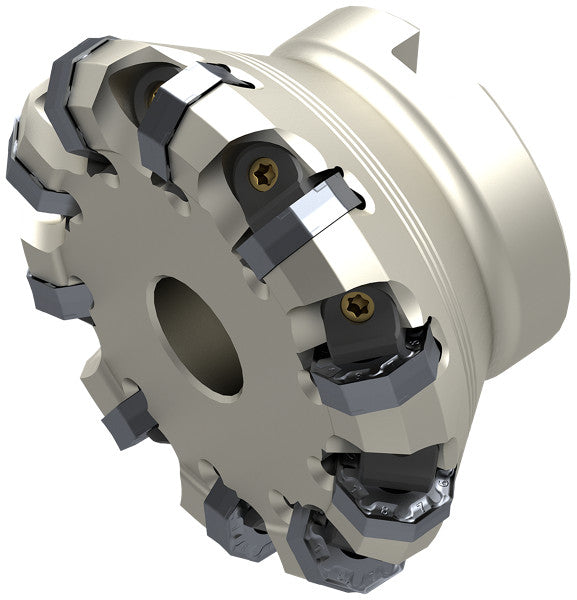

| Name | Ceratizit A273.1000.R.31-06-C250-250-EF MaxiMill Shell Mill 5874110031 | |
| EDP # | 0713981 | |
| Workpiece Material(s) | Steel (Blue) HiTemp Alloy (Orange) Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 600.0 oz | 17000 g |
| Cutting diameter / DC | 10.0000' | 254.000 mm |
| Depth of cut maximum / APMX | 0.1380' | 3.505 mm |
| Face mounted insert count / ZNF | 31 | |
| Overall length / OAL | 6.5000' | 165.100 mm |
| Hub diameter / DHUB | 6.5000' | 165.100 mm |
| Mounting spigot diameter / DCONMS H6 | 2.5000' | 63.500 mm |
| Rotational speed maximum / RPMX | 2600 1/min. | |
| torque moment | 5 Nm | |
| Tool cutting edge angle / KAPR | 45 ° | |
| Insert | OAKU / XAHT 0605 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
