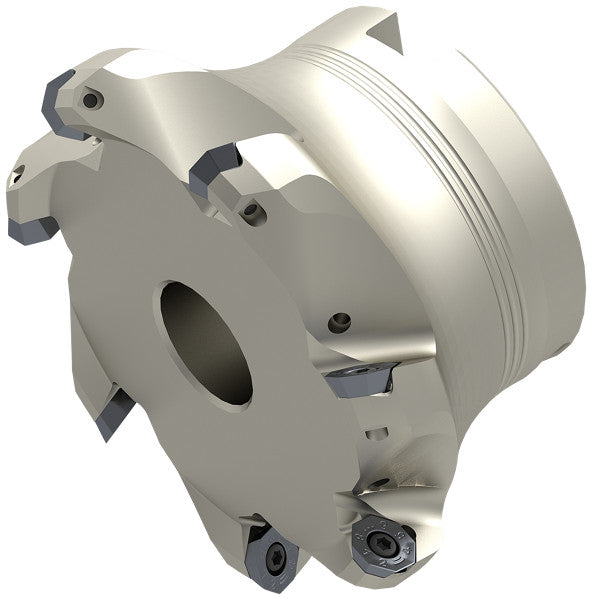

Ceratizit A274.150.R.05-09-A050-175-EF CoreLine Face Mills 274-04/-09 5874415005 (0713982)
Ceratizit A274.150.R.05-09-A050-175-EF CoreLine Face Mills 274-04/-09 5874415005 (0713982)
Couldn't load pickup availability
Ceratizit Article Number: 5874415005
Ceratizit Material Number: 11709058
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit A274.150.R.05-09-A050-175-EF CoreLine Face Mills 274-04/-09 5874415005 | |
| EDP # | 0713982 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) Aluminum (Green) Composites (Black) Cast Iron (Red) Stainless Steel (Yellow) Steel (Blue) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 11.0 oz | 302 g |
| Productsystem | 274-04/-09 | |
| Machining process - Main Application | Helical plunging | |

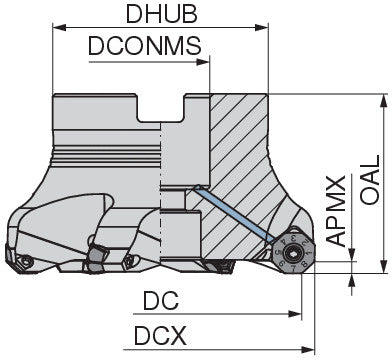

| Cutting diameter maximum / DCX | 1.7362" | 44.100 mm |
| Depth of cut maximum / APMX | 0.0980" | 2.490 mm |
| Face mounted insert count / ZNF | 5 | |
| Cutting diameter / DC | 1.5000" | 38.100 mm |
| Overall length / OAL | 1.4200" | 36.070 mm |
| Hub diameter / DHUB | 1.4200" | 36.070 mm |
| Mounting spigot diameter / DCONMS H6 | 0.5000" | 12.700 mm |
| Rotational speed maximum / RPMX | 29200 1/min. | |
| torque moment | 1.2 Nm | |
| Insert | OF.. 0403 / SF.. 0903 | |
| Tool cutting edge angle / KAPR | 43 ° | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
