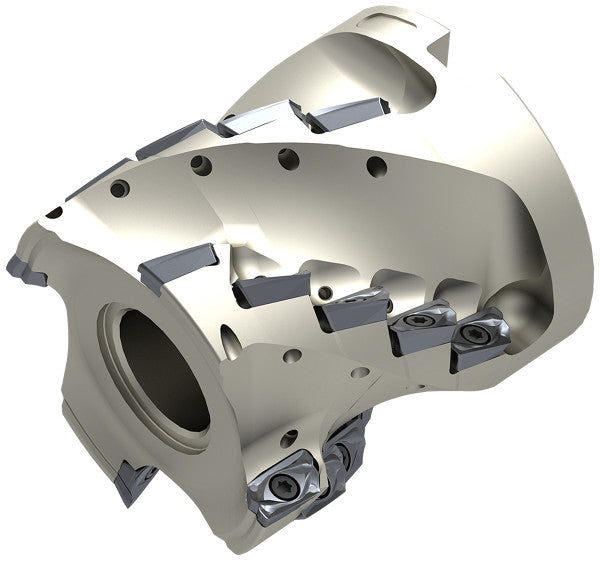

Ceratizit A211.250.R.04K5-15-A100-EF CoreLine Extended Flute Cutter 211-15K 5875925004 (0714022)
Ceratizit A211.250.R.04K5-15-A100-EF CoreLine Extended Flute Cutter 211-15K 5875925004 (0714022)
Couldn't load pickup availability
Ceratizit Article Number: 5875925004
Ceratizit Material Number: 11718905
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit A211.250.R.04K5-15-A100-EF CoreLine Extended Flute Cutter 211-15K 5875925004 | |
| EDP # | 0714022 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Stainless Steel (Yellow) Hard/Tool Steel (Grey) Cast Iron (Red) Steel (Blue) HiTemp Alloy (Orange) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 42.0 oz | 1180 g |
| Productsystem | 211-15K | |
| Machining process - Main Application | Shoulder milling | |

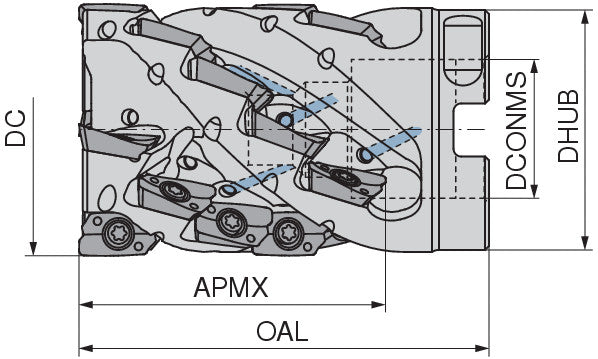

| Depth of cut maximum / APMX | 2.5000" | 63.500 mm |
| Face mounted insert count / ZNF | 4 | |
| Cutting diameter / DC | 2.5000" | 63.500 mm |
| Peripheral effective cutting edge count / ZEFP | 20 | |
| Peripheral mounted insert count / ZNP | 5.0000" | 127.000 mm |
| Overall length / OAL | 3.5000" | 88.900 mm |
| Hub diameter / DHUB | 2.2500" | 57.150 mm |
| Mounting spigot diameter / DCONMS H6 | 1.0000" | 25.400 mm |
| Rotational speed maximum / RPMX | 12500 1/min. | |
| torque moment | 3.2 Nm | |
| Insert | XD.T 1505 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
