Description
Ceratizit Article Number: 5878025004
Ceratizit Material Number: 11718908
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

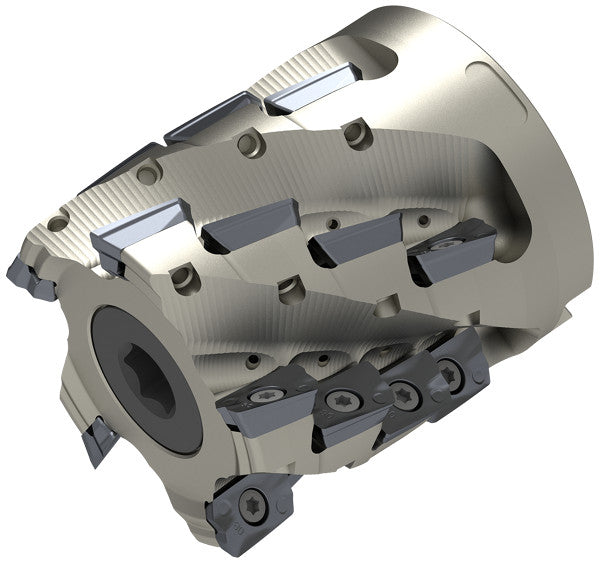

| Name | Ceratizit A211.250.R.04K4-20-A100-EF MaxiMill Extended Flute Cutter 211-20K 5878025004 | |
| EDP # | 0714024 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Stainless Steel (Yellow) Cast Iron (Red) Cast Iron (Red) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 40.0 oz | 1146 g |

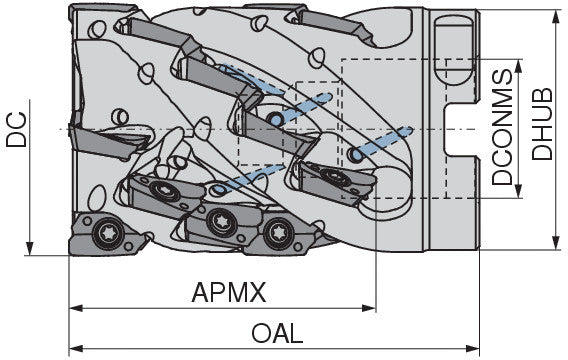

| Cutting diameter / DC | 2.5000" | 63.500 mm |
| Depth of cut maximum / APMX | 2.6500" | 67.310 mm |
| Face mounted insert count / ZNF | 4 | |
| Peripheral effective cutting edge count / ZEFP | 16 | |
| Peripheral mounted insert count / ZNP | 4 | |
| Overall length / OAL | 3.7500" | 95.250 mm |
| Hub diameter / DHUB | 2.2500" | 57.150 mm |
| Mounting spigot diameter / DCONMS H6 | 1.0000" | 25.400 mm |
| Rotational speed maximum / RPMX | 14300 1/min. | |
| Tool cutting edge angle / KAPR | 90 ° | |
| Insert | XD.. 2007.. | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
