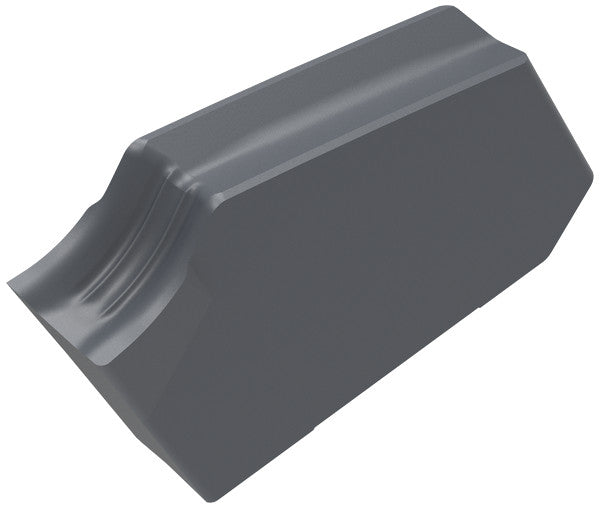

Ceratizit FX 2.2L5-F1 CTPP345 CoreLine Carbide Grooving Insert 70331847 (0714087)
Ceratizit FX 2.2L5-F1 CTPP345 CoreLine Carbide Grooving Insert 70331847 (0714087)
Couldn't load pickup availability
Ceratizit Article Number: 70331847
Ceratizit Material Number: 11724091
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit FX 2.2L5-F1 CTPP345 CoreLine Carbide Grooving Insert 70331847 | |
| EDP # | 0714087 | |
| Weight (1 pc.) | 0.1 oz | 1.4 g |

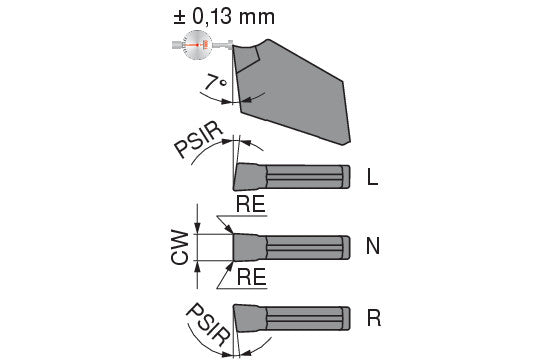

| Cutting width / CW -0.1 | 0.0866" | 2.200 mm |
| Insert hand / IH | L | |
| Insert length / INSL | 0.3543" | 9.000 mm |
| Corner radius / RE +/-0,05 | 0.0059" | 0.150 mm |
| Tool lead angle / PSIR | 5 ° | |
| Profile depth insert / PDPT | 0.0748" | 1.900 mm |
| Chip breaker (Ceratizit) / CBMD | -F1 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | D | |
| Machining process - Main Application | External grooving | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
