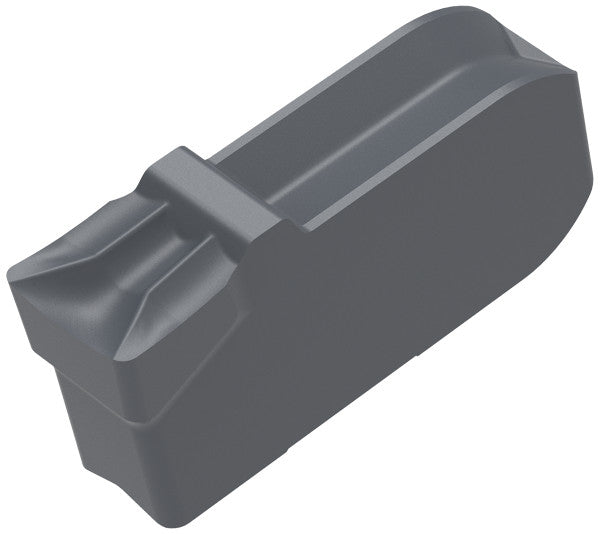

Ceratizit SX E3.00N0.30-F2 CTPP345 CoreLine Carbide Grooving Insert 70346823 (0714104)
Ceratizit SX E3.00N0.30-F2 CTPP345 CoreLine Carbide Grooving Insert 70346823 (0714104)
Couldn't load pickup availability
Ceratizit Article Number: 70346823
Ceratizit Material Number: 11724552
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SX E3.00N0.30-F2 CTPP345 CoreLine Carbide Grooving Insert 70346823 | |
| EDP # | 0714104 | |
| Weight (1 pc.) | 0.1 oz | 2.5 g |
| Cutting width / CW +/-0,02 | 0.1181" | 3.000 mm |
| Insert length / INSL | 0.4331" | 11.000 mm |
| Corner radius / RE +/-0,05 | 0.0118" | 0.300 mm |
| Profile depth insert / PDPT | 0.0787" | 2.000 mm |
| Clearance angle major / AN | 11 ° | |
| Insert hand / IH | N | |
| Chip breaker (Ceratizit) / CBMD | -F2 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | D | |
| Machining process - Main Application | Grooving and Turning | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
