Description
Ceratizit Article Number: 50681620
Ceratizit Material Number: 11773386
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

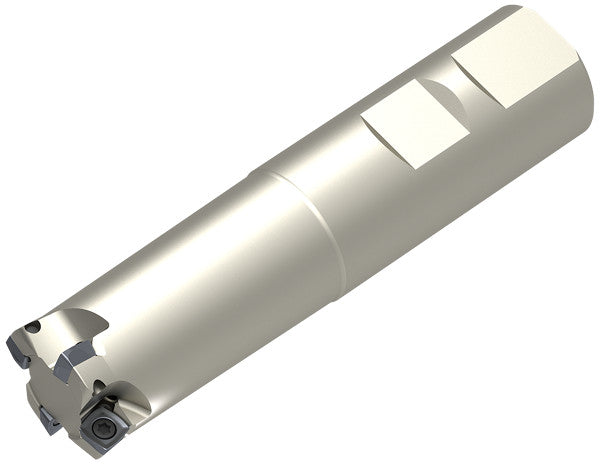

| Name | Ceratizit CHFC.20.R.03-06-B-50 CoreLine High-feed End Mill 50681620 | |
| EDP # | 0714269 | |
| Workpiece Material(s) | Steel (Blue) HiTemp Alloy (Orange) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) HiTemp Alloy (Orange) Stainless Steel (Yellow) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 8.0 oz | 218 g |
| Product-Carbon-Footprint | B | |

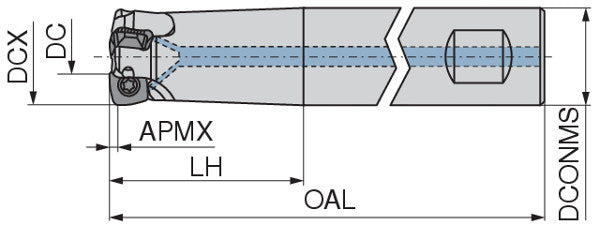

| Cutting diameter maximum / DCX | 0.7874" | 20.000 mm |
| Cutting diameter / DC | 0.4331" | 11.000 mm |
| Face mounted insert count / ZNF | 3.0000" | 76.200 mm |
| Protruding length / LPR | 2.0079" | 51.000 mm |
| Depth of cut maximum / APMX | 0.0315" | 0.800 mm |
| Neck Diameter / DN | 0.6772" | 17.200 mm |
| Overall length / OAL | 3.9764" | 101.000 mm |
| Head length / LH | 1.9685" | 50.000 mm |
| Neck diameter (BD) / BD | 0.7559" | 19.200 mm |
| Mounting spigot diameter / DCONMS h6 | 0.7874" | 20.000 mm |
| Rotational speed maximum / RPMX | 14500 1/min. | |
| Insert | XPLX 0603.. | |
| torque moment | 1.2 Nm | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
