Description
Ceratizit Article Number: 5868112505
Ceratizit Material Number: 11773430
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

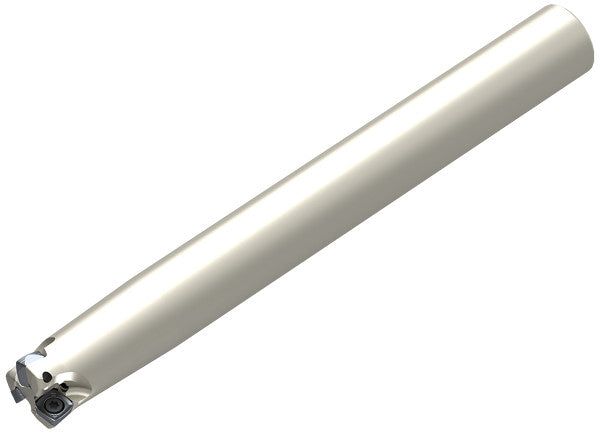

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CHFC.125.R.05-06-A100-250-EF-900 CoreLine End Mills 5868112505 | |
| EDP # | 0714284 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 33.0 oz | 935 g |

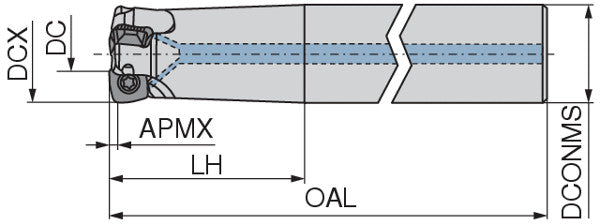

| Cutting diameter maximum / DCX | 1.2500" | 31.750 mm |
| Cutting diameter / DC | 0.9120" | 23.160 mm |
| Face mounted insert count / ZNF | 5.0000" | 127.000 mm |
| Protruding length / LPR | 6.7717" | 172.000 mm |
| Depth of cut maximum / APMX | 0.0310" | 0.790 mm |
| Neck Diameter / DN | 1.1969" | 30.400 mm |
| Overall length / OAL | 9.0000" | 228.600 mm |
| Head length / LH | 2.5000" | 63.500 mm |
| Neck diameter (BD) / BD | 1.2067" | 30.650 mm |
| Mounting spigot diameter / DCONMS h6 | 1.0000" | 25.400 mm |
| Rotational speed maximum / RPMX | 10700 1/min. | |
| Insert | XPLX 0603.. | |
| torque moment | 1.2 Nm | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
