Description
Ceratizit Article Number: 7405642000
Ceratizit Material Number: 11795054
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

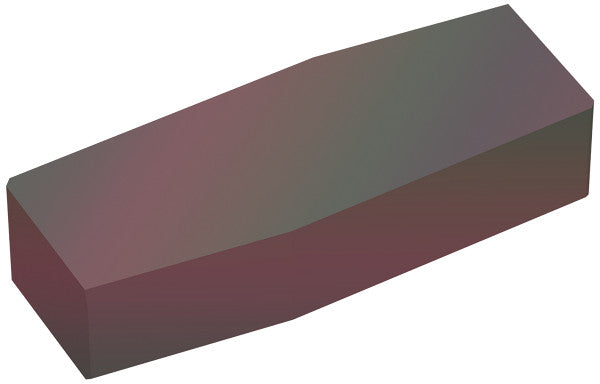

| Name | Ceratizit YNCR 080308P10-F50 CTCP625 MaxiTurn Carbide Bar Peeling indexable Insert 7405642000 | |
| EDP # | 0714329 | |
| Weight (1 pc.) | 0.1 oz | 3.5 g |
| Product-Carbon-Footprint | B | |

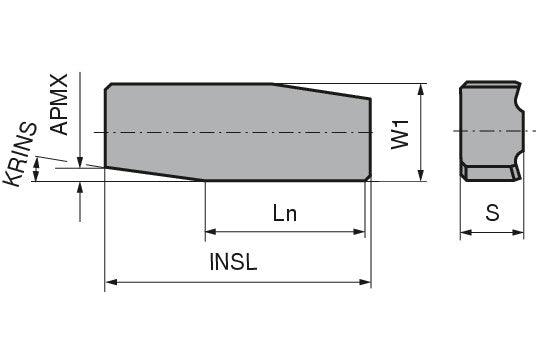

| Length of the secondary cutting edge | 0.3150" | 8.000 mm |
| Depth of cut maximum / APMX | 0.0197" | 0.500 mm |
| Cutting edge angle major / KRINS | 8 ° | |
| Insert thickness / S | 0.1378" | 3.500 mm |
| Insert length / INSL | 0.5846" | 14.850 mm |
| Insert width / W1 | 0.2165" | 5.500 mm |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| 080308P10 | ||
| support chamfer angle / GB | 10 ° | |
| Face land size code / FLSC | P10 | |
| Chip breaker (Ceratizit) / CBMD | -F50 | |
| Coating name / Grade (Ceratizit) / COATN | CTCP625 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
