Description
Ceratizit Article Number: 7406474100
Ceratizit Material Number: 11816984
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

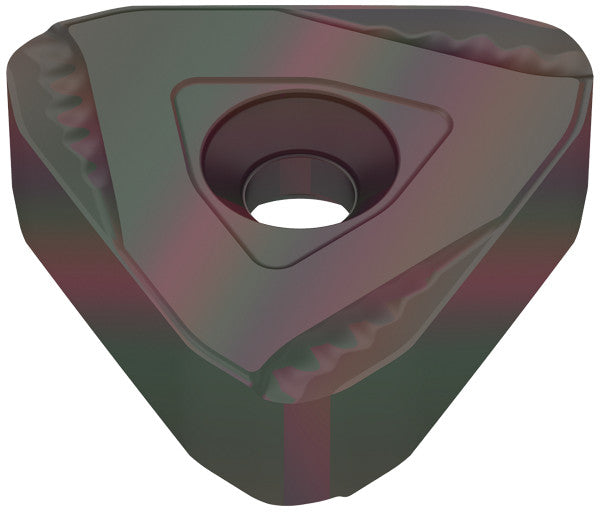

| Name | Ceratizit NNUX 201020P30-M43 CTCP615 MaxiTurn Carbide Bar Peeling indexable Insert 7406474100 | |
| EDP # | 0714388 | |
| Weight (1 pc.) | 4.0 oz | 122 g |
| Product-Carbon-Footprint | B | |

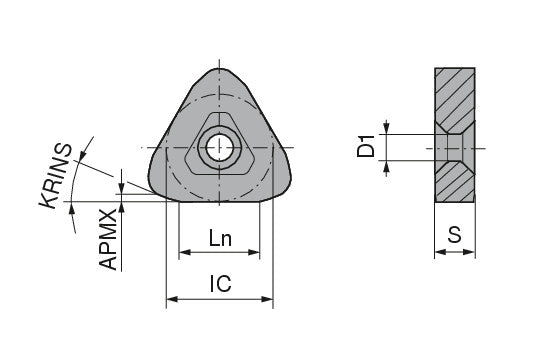

| Length of the secondary cutting edge | 0.7874" | 20.000 mm |
| Corner radius / RE | 0.1969" | 5.000 mm |
| Depth of cut maximum / APMX | 0.0984" | 2.500 mm |
| Cutting edge angle major / KRINS | 20 ° | |
| Insert thickness / S | 0.3937" | 10.000 mm |
| Fixing hole diameter / D1 | 0.2756" | 7.000 mm |
| Inscribed circle diameter / IC | 1.1024" | 28.000 mm |
| Insert index count / NOI | 6.0000" | 152.400 mm |
| support chamfer angle / GB | 3 ° | |
| Face land size code / FLSC | P30 | |
| Chip breaker (Ceratizit) / CBMD | -M43 | |
| Coating name / Grade (Ceratizit) / COATN | CTCP615 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
