Description
Ceratizit Article Number: 10830117
Ceratizit Material Number: 11822293
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

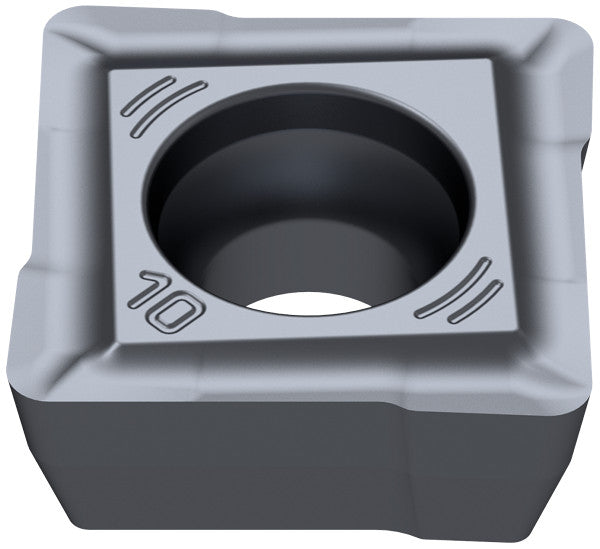

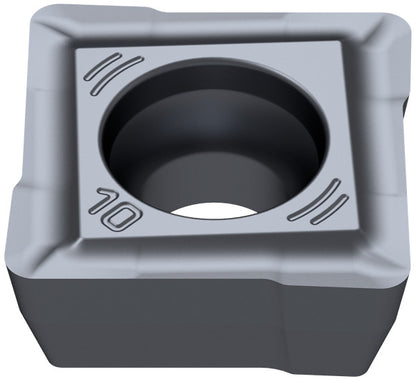

| Name | Ceratizit SONT 175612ER-M30 CTPP430 CoreLine Carbide Drilling indexable Insert 10830117 | |
| EDP # | 0714457 | |
| Weight (1 pc.) | 1.0 oz | 23.9 g |

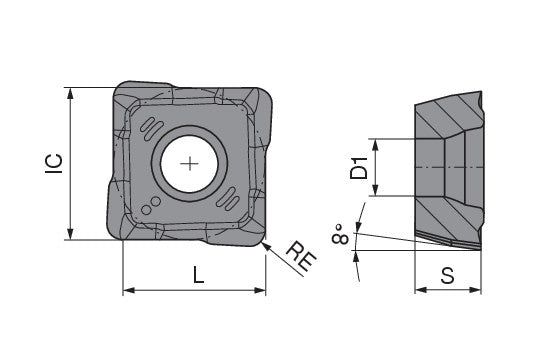

| Inscribed circle diameter / IC | 0.6890" | 17.500 mm |
| designation | 175612.0000" | 4460544.800 mm |
| insert thickness | 56.0000" | 1422.400 mm |
| Fixing hole diameter / D1 | 0.2087" | 5.300 mm |
| Insert thickness / S | 0.2205" | 5.600 mm |
| Corner radius / RE | 0.0472" | 1.200 mm |
| Cutting edge length / L | 0.6575" | 16.700 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
