Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 76225544
Ceratizit Material Number: 11827147
Product discontinued! Unavailable if out of stock.
The replacement OEM part number is 7622554401, use this number in the product search or:
Please contact us for details on the replacement for this item.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

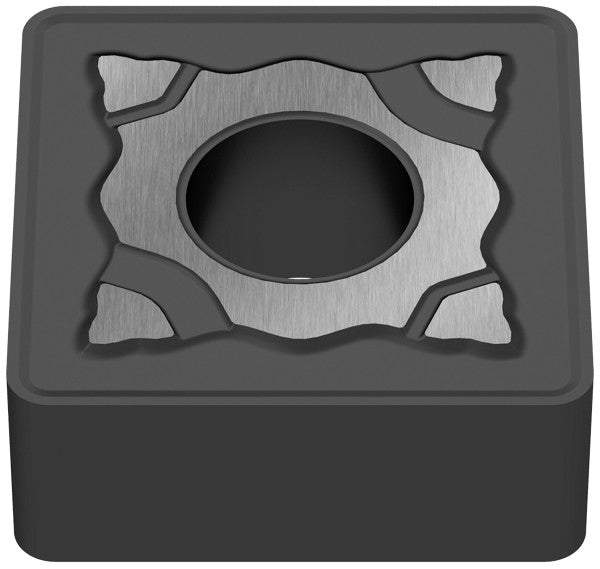

| Name | Ceratizit SNMG 190612EN-M70 CTCP125 76225544 | |
| EDP # | 0714505 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 27.1 g |
| designation | 190612EN | |
| Corner radius / RE | 0.0472' | 1.200 mm |
| Cutting edge length / L | 0.7500' | 19.050 mm |
| Insert thickness / S | 0.2500' | 6.350 mm |
| Fixing hole diameter / D1 | 0.3126' | 7.940 mm |
| Inscribed circle diameter / IC | 0.7500' | 19.050 mm |
| Chip breaker (Ceratizit) / CBMD | -M70 | |
| Coating name / Grade (Ceratizit) / COATN | CTCP125 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
