Description
Ceratizit Article Number: 70805464
Ceratizit Material Number: 11831093
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ECM 07L-4.00D-27 CTWN425 EcoCut Drilling And Turning Tool For Small Diameters Mini 70805464 | |
| EDP # | 0714583 | |
| Weight (1 pc.) | 1.0 oz | 24.9 g |

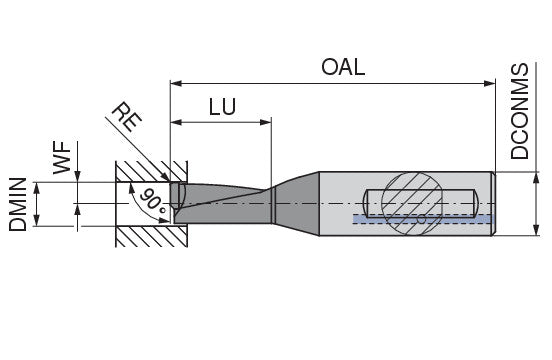

| Minimum bore diameter / DMIN | 0.2756" | 7.000 mm |
| Mounting spigot diameter / DCONMS | 0.3150" | 8.000 mm |
| Overall length / OAL | 2.0866" | 53.000 mm |
| Usable length / LU | 1.1024" | 28.000 mm |
| Functional width / WF | 0.1378" | 3.500 mm |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Version | Left | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | B | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
