Description
Ceratizit Article Number: 5868630405
Ceratizit Material Number: 11831663
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

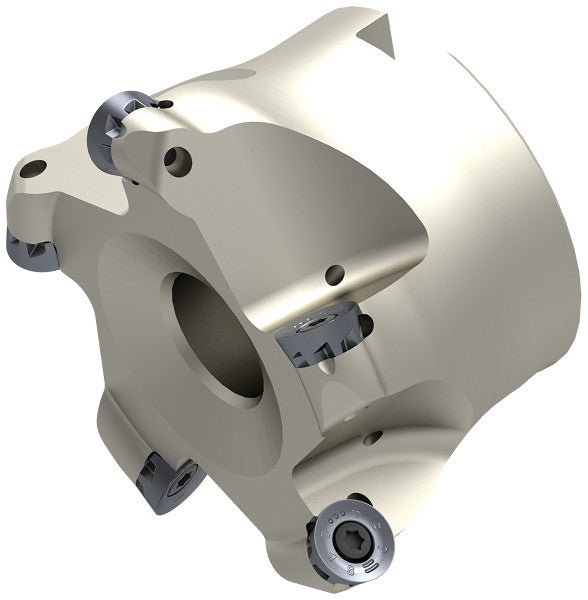

| Name | Ceratizit A251.300.R.05-20-A100-200-RS-EF CoreLine Face Mills 5868630405 | |
| EDP # | 0714611 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Cast Iron (Red) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 27.0 oz | 752 g |

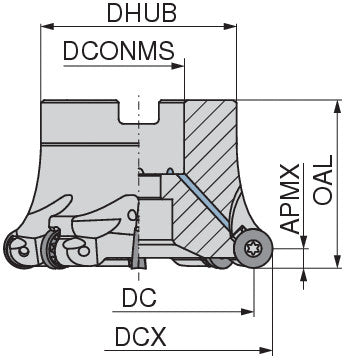

| Cutting diameter maximum / DCX | 3.0000" | 76.200 mm |
| Depth of cut maximum / APMX | 0.3940" | 10.010 mm |
| Face mounted insert count / ZNF | 5.0000" | 127.000 mm |
| Cutting diameter / DC | 2.2130" | 56.210 mm |
| Overall length / OAL | 2.2500" | 57.150 mm |
| Hub diameter / DHUB | 2.2500" | 57.150 mm |
| Mounting spigot diameter / DCONMS H6 | 1.0000" | 25.400 mm |
| Rotational speed maximum / RPMX | 8600 1/min. | |
| Insert | RP.X 2006.. | |
| torque moment | 5 Nm | |
| Minimum Extension (DIN 6535 HA) | -0.0728" - 0.0059" | -1.850 - 0.150 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
