Ceratizit C251.0750.R.03-08-A-200-RS-EF-800 CoreLine End Mills 5868507503 (0714612)
Ceratizit C251.0750.R.03-08-A-200-RS-EF-800 CoreLine End Mills 5868507503 (0714612)
Couldn't load pickup availability
Ceratizit Article Number: 5868507503
Ceratizit Material Number: 11831669
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

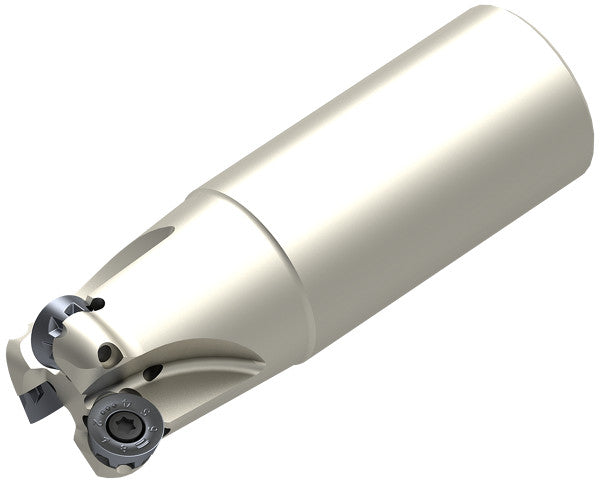

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit C251.0750.R.03-08-A-200-RS-EF-800 CoreLine End Mills 5868507503 | |
| EDP # | 0714612 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) Cast Iron (Red) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 15.0 oz | 413 g |
| Productsystem | 251 RS | |
| Machining process - Main Application | Face milling | |

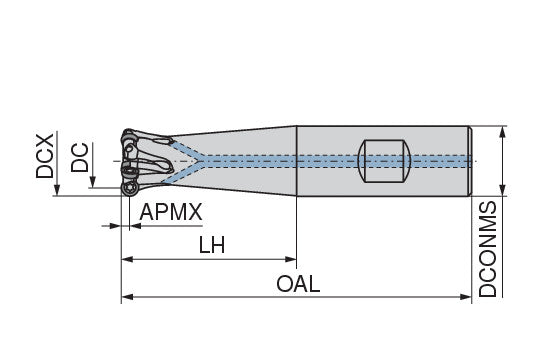

| Cutting diameter maximum / DCX | 0.7500" | 19.050 mm |
| Cutting diameter / DC | 0.4350" | 11.050 mm |
| Face mounted insert count / ZNF | 3 | |
| Depth of cut maximum / APMX | 0.1570" | 3.990 mm |
| Overall length / OAL | 8.0000" | 203.200 mm |
| Head length / LH | 2.0000" | 50.800 mm |
| Mounting spigot diameter / DCONMS | 0.7500" | 19.050 mm |
| Rotational speed maximum / RPMX | 22260 1/min. | |
| Insert | RDHX 0802.. | |
| torque moment | 1.2 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
