Ceratizit C251.150.R.02-16-A125-375-RS-EF-1000 CoreLine End Mills 5868575002 (0714618)
Ceratizit C251.150.R.02-16-A125-375-RS-EF-1000 CoreLine End Mills 5868575002 (0714618)
Couldn't load pickup availability
Ceratizit Article Number: 5868575002
Ceratizit Material Number: 11831679
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

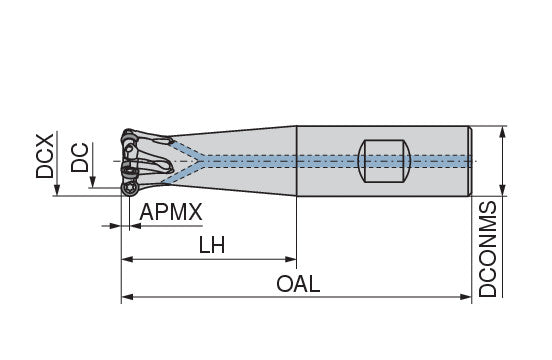

| Properties | ||
|---|---|---|
| Name | Ceratizit C251.150.R.02-16-A125-375-RS-EF-1000 CoreLine End Mills 5868575002 | |
| EDP # | 0714618 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 52.0 oz | 1484 g |
| Productsystem | 251 RS | |
| Machining process - Main Application | Face milling | |
| Cutting diameter maximum / DCX | 1.5000" | 38.100 mm |
| Cutting diameter / DC | 0.8700" | 22.100 mm |
| Face mounted insert count / ZNF | 2 | |
| Depth of cut maximum / APMX | 0.3150" | 8.000 mm |
| Overall length / OAL | 10.0000" | 254.000 mm |
| Head length / LH | 3.7500" | 95.250 mm |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Rotational speed maximum / RPMX | 10500 1/min. | |
| Insert | RP.X 1605.. | |
| torque moment | 5 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
