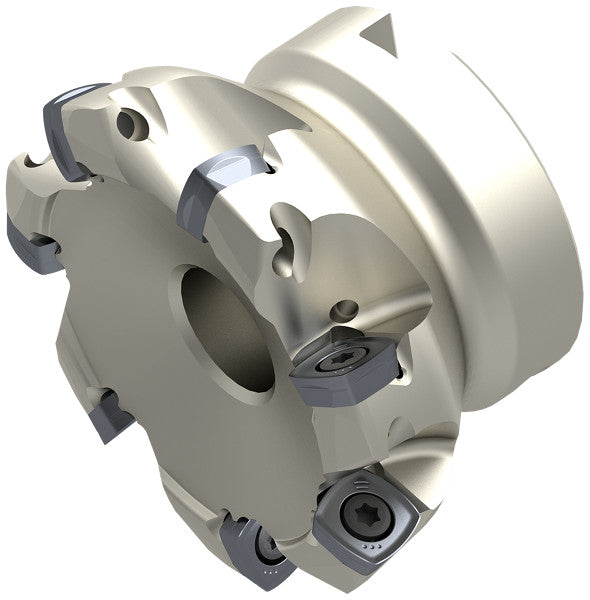

Ceratizit AHFC.250.R.06-09-A075-200-EF CoreLine Face Mills 5868325006 (0714619)
Ceratizit AHFC.250.R.06-09-A075-200-EF CoreLine Face Mills 5868325006 (0714619)
Couldn't load pickup availability
Ceratizit Article Number: 5868325006
Ceratizit Material Number: 11831694
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit AHFC.250.R.06-09-A075-200-EF CoreLine Face Mills 5868325006 | |
| EDP # | 0714619 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) HiTemp Alloy (Orange) Stainless Steel (Yellow) Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 23.0 oz | 639 g |
| Productsystem | HFC | |

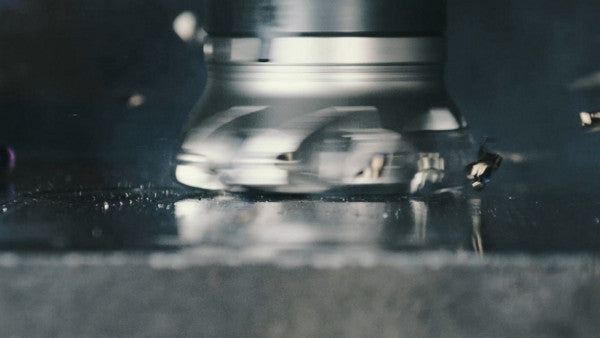

| Machining process - Main Application | Helical plunging | |

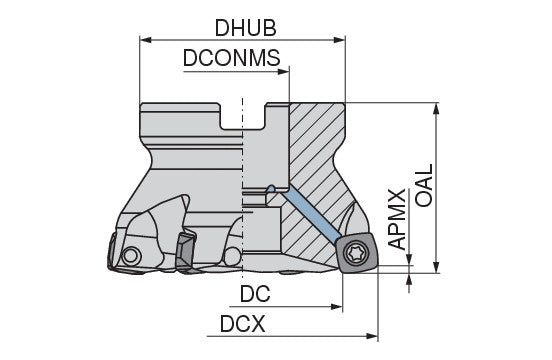

| Cutting diameter maximum / DCX | 2.5000" | 63.500 mm |
| Depth of cut maximum / APMX | 0.0390" | 0.990 mm |
| Face mounted insert count / ZNF | 6 | |
| Cutting diameter / DC | 2.0350" | 51.690 mm |
| Overall length / OAL | 1.7500" | 44.450 mm |
| Hub diameter / DHUB | 1.7500" | 44.450 mm |
| Mounting spigot diameter / DCONMS H6 | 0.7500" | 19.050 mm |
| Rotational speed maximum / RPMX | 20500 1/min. | |
| Insert | XDLX 09T3.. | |
| torque moment | 3.2 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
