Description
Ceratizit Article Number: 70804112
Ceratizit Material Number: 11837919
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

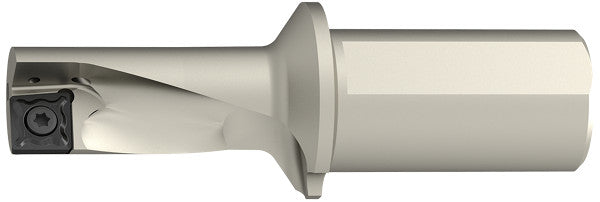

| Name | Ceratizit ECC 12R-2.25D 06 EcoCut Classic 2.25xD 70804112 | |
| EDP # | 0714674 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Stainless Steel (Yellow) Aluminum (Green) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 4.0 oz | 100 g |

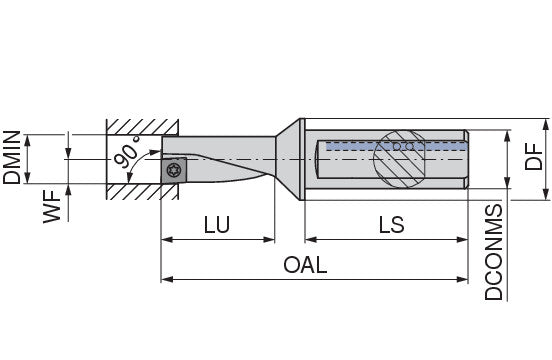

| Minimum bore diameter / DMIN | 0.4724" | 12.000 mm |
| Flange diameter / DF | 0.8661" | 22.000 mm |
| Overall length / OAL | 3.0709" | 78.000 mm |
| Usable length / LU | 1.0630" | 27.000 mm |
| Shank length / LS | 1.7717" | 45.000 mm |
| Functional width / WF | 0.2362" | 6.000 mm |
| Insert | XC.T 0602.. | |
| torque moment | 1 Nm | |
| Version | Right-hand | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
