Description
Ceratizit Article Number: 5874160013
Ceratizit Material Number: 11840079
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

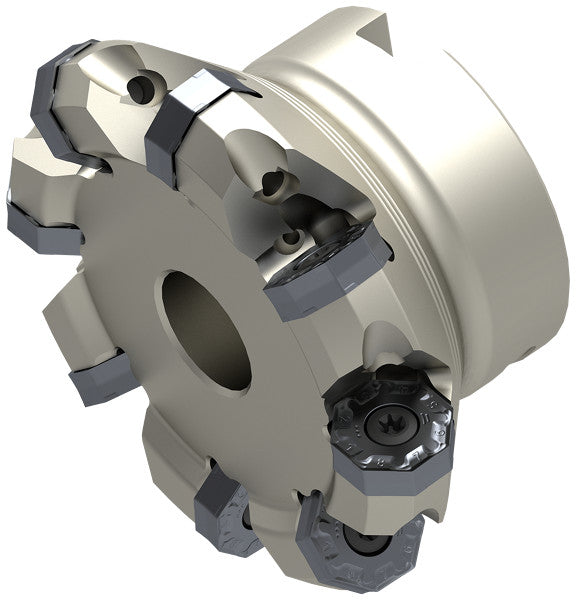

| Name | Ceratizit A273.600.R.13-06-B150-250-EF CoreLine Face Mills 273-06 5874160013 | |
| EDP # | 0714726 | |
| Workpiece Material(s) | Steel (Blue) HiTemp Alloy (Orange) Stainless Steel (Yellow) Cast Iron (Red) Cast Iron (Red) Stainless Steel (Yellow) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 160.0 oz | 4538 g |

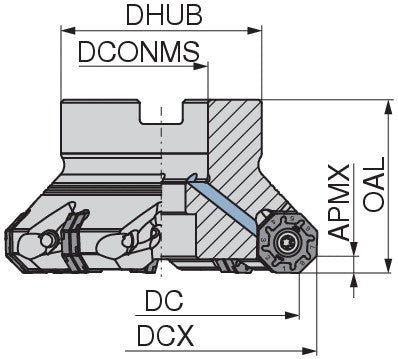

| Depth of cut maximum / APMX | 0.1380" | 3.510 mm |
| Face mounted insert count / ZNF | 13.0000" | 330.200 mm |
| Cutting diameter / DC | 6.0000" | 152.400 mm |
| Overall length / OAL | 3.7500" | 95.250 mm |
| Hub diameter / DHUB | 3.7500" | 95.250 mm |
| Mounting spigot diameter / DCONMS H6 | 1.5000" | 38.100 mm |
| Rotational speed maximum / RPMX | 7900 1/min. | |
| torque moment | 5 Nm | |
| Insert | OAKU / XAHT 0605 | |
| Tool cutting edge angle / KAPR | 45 ° | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
