Description
Ceratizit Article Number: 7145490001
Ceratizit Material Number: 11861084
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

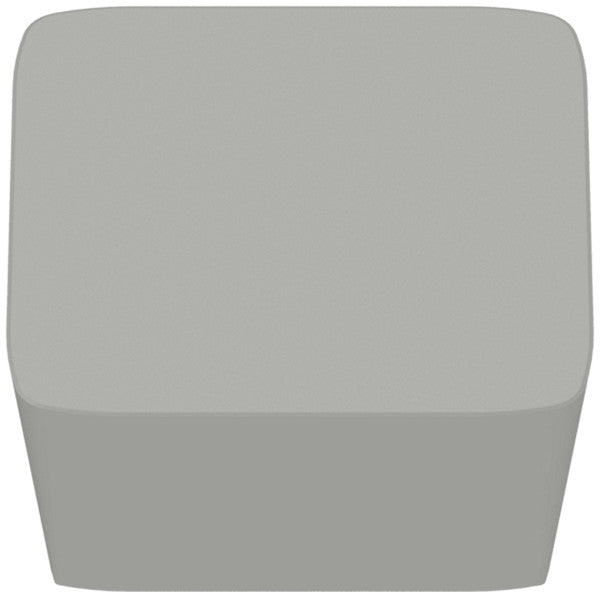

| Name | Ceratizit SCHN 090407TNQ-005D CTN3105 CERAMIC CARBIDE TURNING INSERT 7145490001 | |
| EDP # | 0714801 | |
| Weight (1 pc.) | 0.04 oz | 1.2 g |
| designation | 090407TN | |

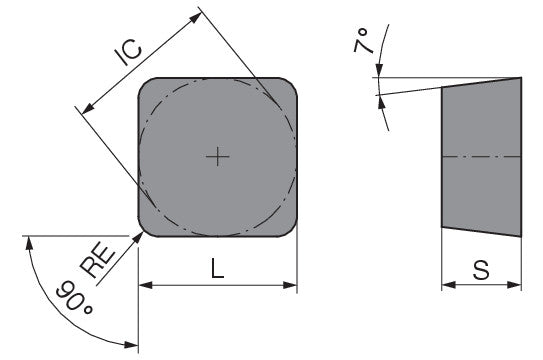

| Corner radius / RE | 0.0276" | 0.700 mm |
| Cutting edge length / L | 0.3748" | 9.520 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| support chamfer angle / GB | 20 ° | |
| Face land width / BN | 0.0020" | 0.050 mm |
| Chip breaker (Ceratizit) / CBMD | -Q | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
