Description
Ceratizit Article Number: 5868640406
Ceratizit Material Number: 11884430
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

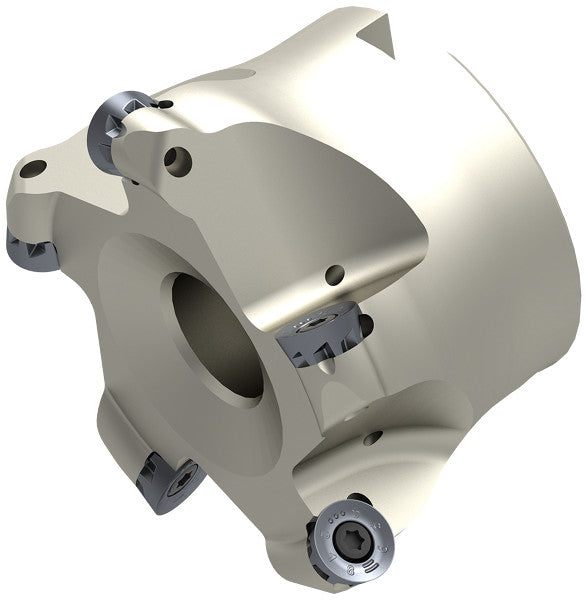

| Name | Ceratizit A251.400.R.06-20-A125-200-RS-EF CoreLine Face Mills 5868640406 | |
| EDP # | 0714904 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Cast Iron (Red) Stainless Steel (Yellow) HiTemp Alloy (Orange) HiTemp Alloy (Orange) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 51.0 oz | 1460 g |

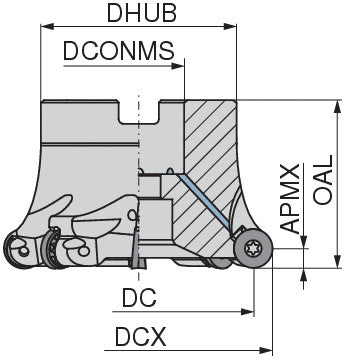

| Cutting diameter maximum / DCX | 4.0000" | 101.600 mm |
| Depth of cut maximum / APMX | 0.3940" | 10.010 mm |
| Face mounted insert count / ZNF | 6.0000" | 152.400 mm |
| Cutting diameter / DC | 3.2130" | 81.610 mm |
| Overall length / OAL | 2.7500" | 69.850 mm |
| Hub diameter / DHUB | 2.7500" | 69.850 mm |
| Mounting spigot diameter / DCONMS H6 | 1.2500" | 31.750 mm |
| Rotational speed maximum / RPMX | 6350 1/min. | |
| Insert | RP.X 2006.. | |
| torque moment | 5 Nm | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
