Description
Ceratizit Article Number: 51012420
Ceratizit Material Number: 11889630
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

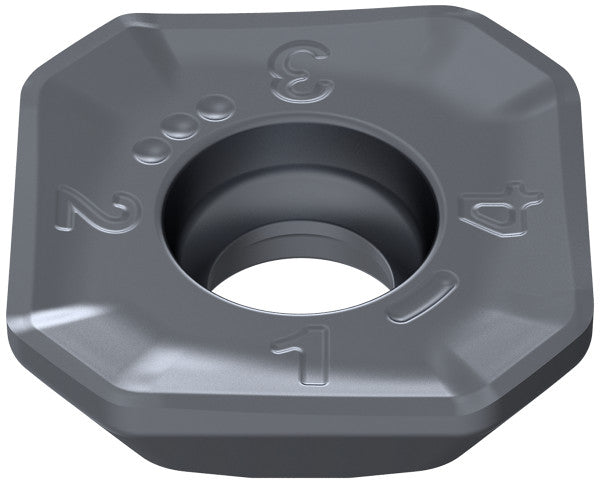

| Name | Ceratizit SFHT 0903AFSR-F50 CTPM240 CoreLine Carbide Milling indexable Insert 51012420 | |
| EDP # | 0714966 | |
| Weight (1 pc.) | 0.1 oz | 3.6 g |

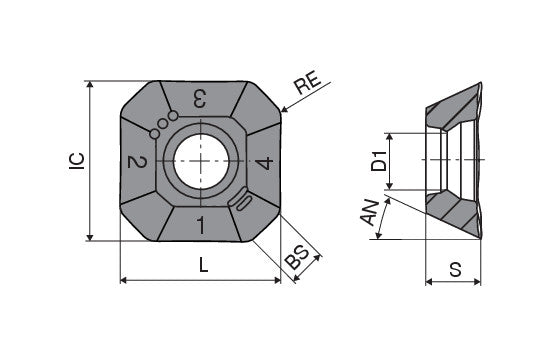

| designation | 0903AFSR | |
| Corner radius / RE | 0.0394" | 1.000 mm |
| Inscribed circle diameter / IC | 0.3858" | 9.800 mm |
| Fixing hole diameter / D1 | 0.1319" | 3.350 mm |
| Cutting edge length / L | 0.3543" | 9.000 mm |
| Trailing edge length / BS | 0.0886" | 2.250 mm |
| Insert thickness / S | 0.1378" | 3.500 mm |
| Clearance angle major / AN | 25 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | D | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
