Description
Ceratizit Article Number: 51038416
Ceratizit Material Number: 11916236
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

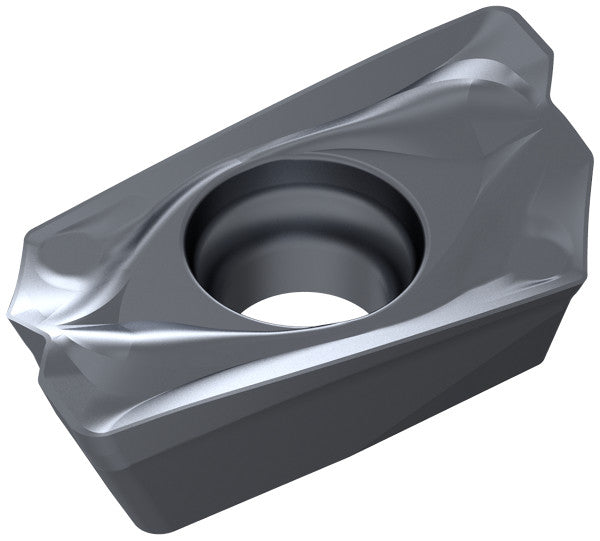

| Name | Ceratizit XDKT 150516SR-M50 CTPM240 CoreLine Carbide Milling indexable Insert 51038416 | |
| EDP # | 0715217 | |
| Weight (1 pc.) | 0.3 oz | 8.0 g |
| designation | 150516SR | |
| Corner radius / RE | 0.0630" | 1.600 mm |
| Inscribed circle diameter / IC | 0.3661" | 9.300 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Cutting edge length / L | 0.5827" | 14.800 mm |
| Trailing edge length / BS | 0.0630" | 1.600 mm |
| Insert thickness / S | 0.2189" | 5.560 mm |
| Clearance angle major / AN | 15 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
