Description
Ceratizit Article Number: 51005220
Ceratizit Material Number: 11917398
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

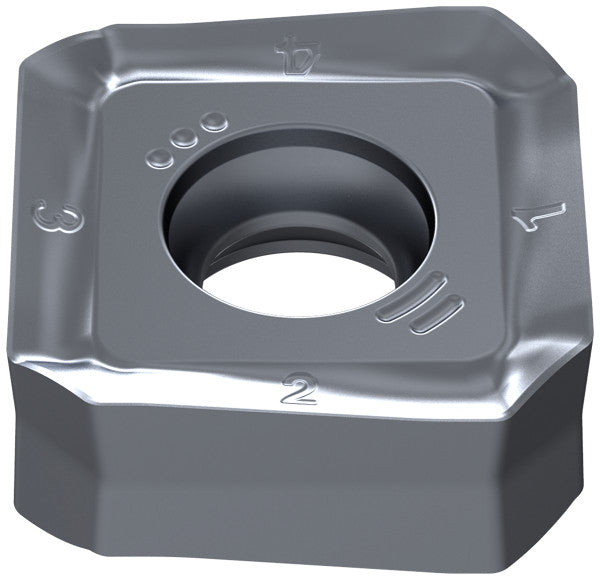

| Name | Ceratizit SAKU 1706ABSR-M50 CTPM225 CoreLine Carbide Milling indexable Insert 51005220 | |
| EDP # | 0715232 | |
| Weight (1 pc.) | 1.0 oz | 21.7 g |

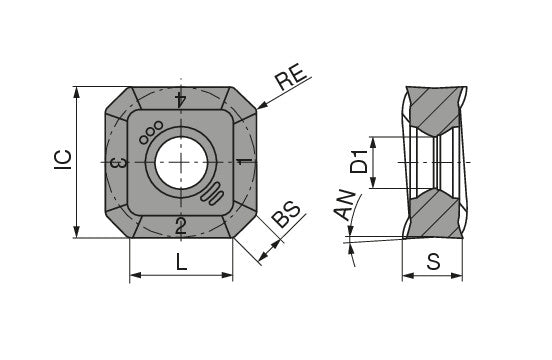

| designation | 1706ABSR | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Inscribed circle diameter / IC | 0.6693" | 17.000 mm |
| Fixing hole diameter / D1 | 0.2283" | 5.800 mm |
| Cutting edge length / L | 0.4665" | 11.850 mm |
| Trailing edge length / BS | 0.1457" | 3.700 mm |
| Insert thickness / S | 0.2500" | 6.350 mm |
| Clearance angle major / AN | 3 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
