Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 7405360100
Ceratizit Material Number: 11928523
Product discontinued! Unavailable if out of stock.
The replacement OEM part number is 7405360101, use this number in the product search or:
Please contact us for details on the replacement for this item.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit YNCF 090608P90-F50 CTCP125 7405360100 | |
| EDP # | 0715310 | |
| Weight (1 pc.) | 0.4 oz | 11.5 g |

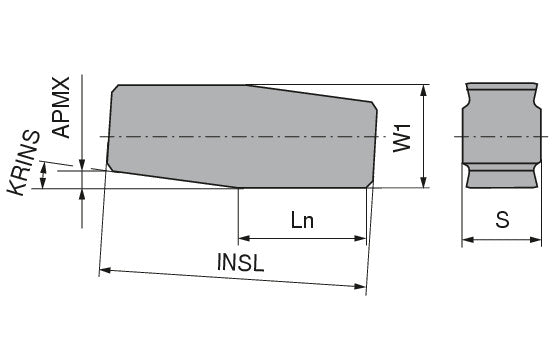

| Length of the secondary cutting edge | 0.3543' | 9.000 mm |
| Depth of cut maximum / APMX | 0.0315' | 0.800 mm |
| Cutting edge angle major / KRINS | 8 ° | |
| Insert thickness / S | 0.2362' | 6.000 mm |
| Insert length / INSL | 0.8051' | 20.450 mm |
| Insert width / W1 | 0.3150' | 8.000 mm |
| Insert index count / NOI | 4 | |
| support chamfer angle / GB | 9 ° | |
| Face land size code / FLSC | P90 | |
| Chip breaker (Ceratizit) / CBMD | -F50 | |
| Coating name / Grade (Ceratizit) / COATN | CTCP125 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
