Description
Ceratizit Article Number: 7147040002
Ceratizit Material Number: 11941291
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

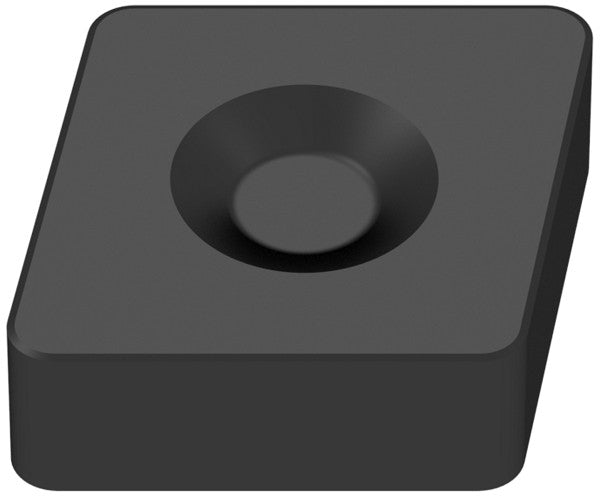

| Name | Ceratizit CNGX 120412TN-020D-C CTBK103 CoreLine PcBN Turning indexable Insert CNGX-C 7147040002 | |
| EDP # | 0715366 | |
| Weight (1 pc.) | 0.2 oz | 4.9 g |
| designation | 120412TN | |

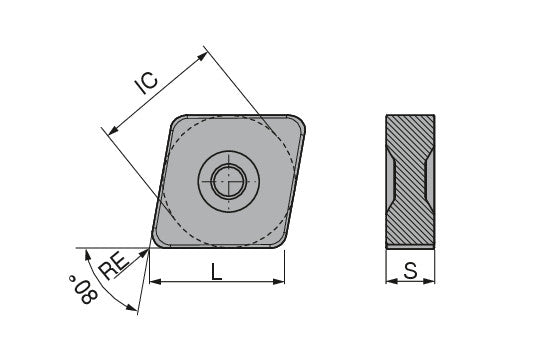

| Corner radius / RE | 0.0472" | 1.200 mm |
| Cutting edge length / L | 0.5079" | 12.900 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 433TN | ||
| support chamfer angle / GB | 20 ° | |
| Face land width / BN | 0.0079" | 0.200 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBK103 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
