Description
Ceratizit Article Number: 7409125101
Ceratizit Material Number: 11959856
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

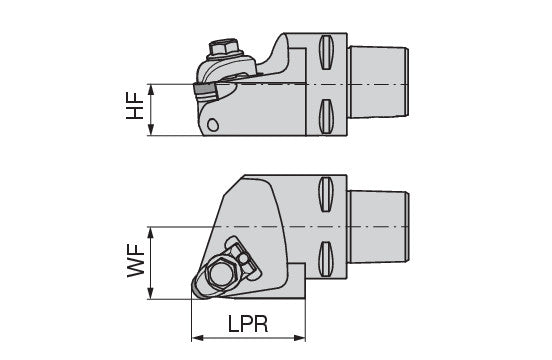

| Name | Ceratizit PSC50-DRGNR 35075 12-C204 CoreLine 90° Tool Holder With Sold Carbide Claw C-Clamp 7409125101 | |
| EDP # | 0715588 | |
| Weight (1 pc.) | 39.0 oz | 1110 g |
| Product-Carbon-Footprint | B | |
| Protruding length / LPR | 2.9528" | 75.000 mm |
| Functional width / WF | 1.3780" | 35.000 mm |
| Functional height / HF | 0.9843" | 25.000 mm |
| Insert | RNGX 12.. | |
| Machine interface size | PSC 50 | |
| Version | Right | |
Background Information:
PSC, or 'Polygonal Shank Coupling (ISO 26623)', holders are made to work with the Sandvik Capto interface without licensing the trademark name.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
