Description
Ceratizit Article Number: 70289520
Ceratizit Material Number: 11969841
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

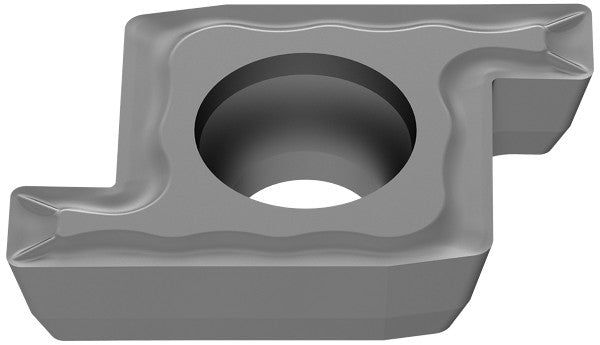

| Name | Ceratizit PM 16LG 252004-M20 CTPP430 PM-L 70289520 | |
| EDP # | 0715617 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.1 oz | 2.1 g |

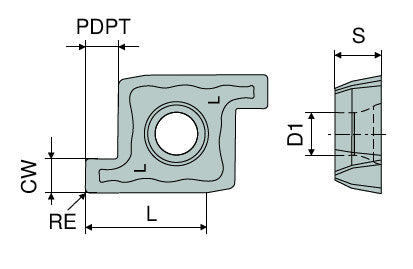

| designation | PM 16 G 252004 | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting width / CW | 0.0984" | 2.500 mm |
| Profile depth insert / PDPT | 0.0787" | 2.000 mm |
| Cutting edge length / L | 0.3150" | 8.000 mm |
| Insert thickness / S | 0.1102" | 2.800 mm |
| Fixing hole diameter / D1 | 0.1339" | 3.400 mm |
| Coating name / Grade (Ceratizit) / COATN | CTPP430 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
