Description
Note that this item has been discontinued and will not be re-stocked.
N.SA.14,0.45°.Z3.HA.EL DPX72S SOLID CARBIDE END MILLING CUTTER
Mat No: 11980175, Article No: 5293514000
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

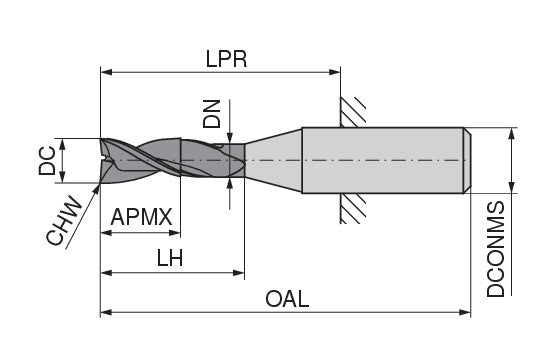

| Properties | ||
|---|---|---|
| Name | Ceratizit N.SA.14,0.45°.Z3.HA.EL DPX72S SOLID CARBIDE END MILLING CUTTER 11980175 (0716386) | |
| EDP # | 0716386 | |
| Weight | 5.9 oz | 168.0 g |
| Cutting diameter DC e8 | 0.5512 inch | 14 mm |
| Depth of cut maximum APMX | 1.7717 inch | 45 mm |
| Neck Diameter DN | 0.5354 inch | 13.6 mm |
| Head length LH | 1.9685 inch | 50 mm |
| Protruding length LPR | 2.1654 inch | 55 mm |
| Overall length OAL | 3.937 inch | 100 mm |
| Alpha | 30 | |
| Mounting spigot diameter DCONMS h6 | 0.5512 inch | 14 mm |
| Corner chamfer width CHW | 0.0079 inch | 0.2 mm |
| Peripheral effective cutting edge count ZEFP | 3 | |
| Designation | N.SA.14.0.45°.Z3.HA.EL DPX72S | |
