Description
Ceratizit Article Number: 7420500300
Ceratizit Material Number: 11990698
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

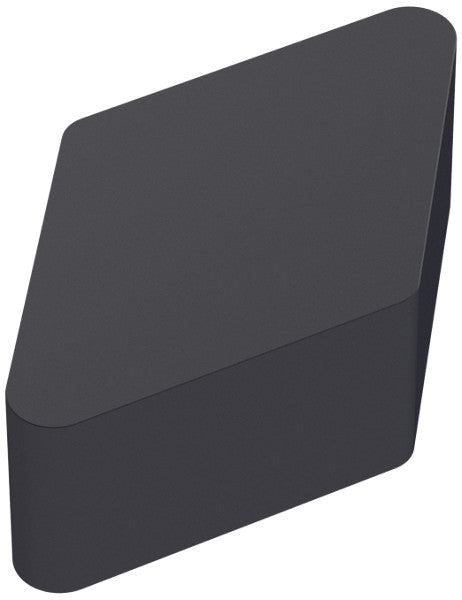

| Name | Ceratizit DNGN 150716TN-005D CTKX715 CoreLine CERAMIC Turning indexable Insert 7420500300 | |
| EDP # | 0716597 | |
| Weight (1 pc.) | 0.3 oz | 9.5 g |
| designation | 150716TN | |
| Corner radius / RE | 0.0630" | 1.600 mm |
| Cutting edge length / L | 0.6102" | 15.500 mm |
| Insert thickness / S | 0.3126" | 7.940 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 454TN | ||
| support chamfer angle / GB | 20 ° | |
| Face land width / BN | 0.0020" | 0.050 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTKX715 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
