Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 51013270
Ceratizit Material Number: 11992903
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

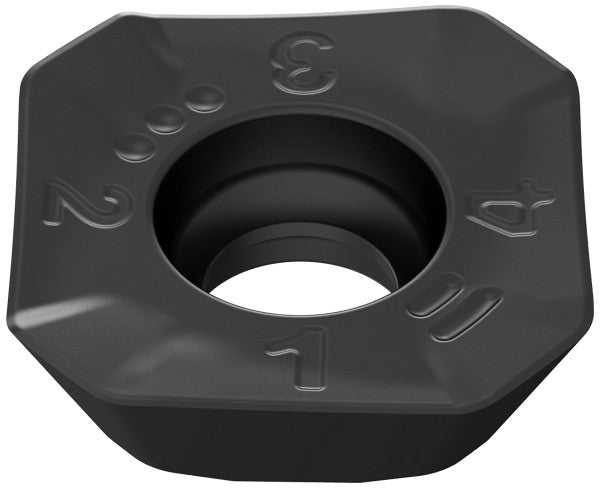

| Name | Ceratizit SFKT 0903AFSR-M50 CTCP220 51013270 | |
| EDP # | 0716606 | |
| Workpiece Material(s) | Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 0.1 oz | 2.4 g |
| designation | 0903AFSR | |
| Corner radius / RE | 0.0394' | 1.000 mm |
| Inscribed circle diameter / IC | 0.3858' | 9.800 mm |
| Fixing hole diameter / D1 | 0.1319' | 3.350 mm |
| Cutting edge length / L | 0.3543' | 9.000 mm |
| Trailing edge length / BS | 0.0886' | 2.250 mm |
| Insert thickness / S | 0.1378' | 3.500 mm |
| Clearance angle major / AN | 25 ° | |
| Coating name / Grade (Ceratizit) / COATN | CTCP220 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
