Description
Ceratizit Article Number: 7406820203
Ceratizit Material Number: 12009082
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

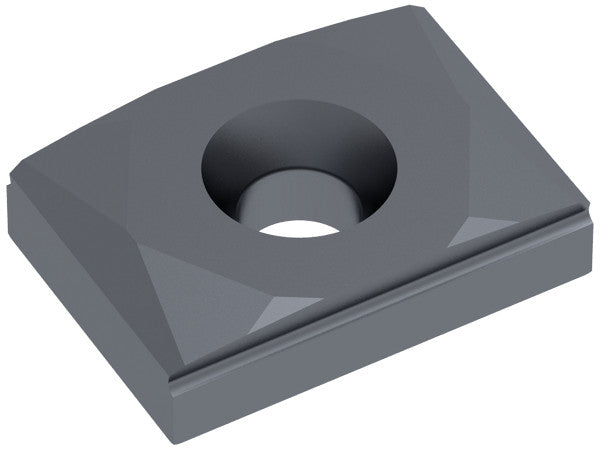

| Name | Ceratizit LNGX 170400E00-F50 CTPM225 MaxiTurn Carbide Bar Peeling indexable Insert 7406820203 | |
| EDP # | 0716654 | |
| Weight (1 pc.) | 0.4 oz | 12.1 g |
| Product-Carbon-Footprint | B | |

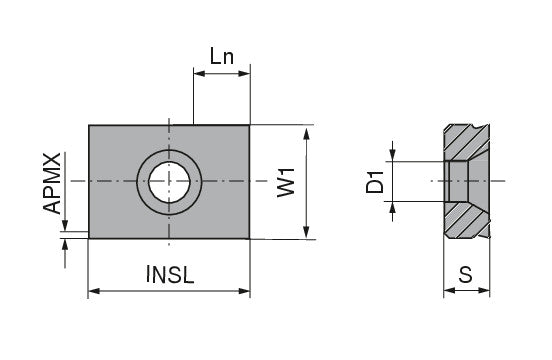

| Length of the secondary cutting edge | 0.2362" | 6.000 mm |
| Depth of cut maximum / APMX | 0.0276" | 0.700 mm |
| Cutting edge angle major / KRINS | 6 ° | |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.1693" | 4.300 mm |
| Insert length / INSL | 0.6693" | 17.000 mm |
| Insert width / W1 | 0.4724" | 12.000 mm |
| Insert index count / NOI | 4.0000" | 101.600 mm |
| 170400E00 | ||
| Face land size code / FLSC | E00 | |
| Chip breaker (Ceratizit) / CBMD | -F50 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
