Description
Ceratizit Article Number: 5877625105
Ceratizit Material Number: 12047389
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

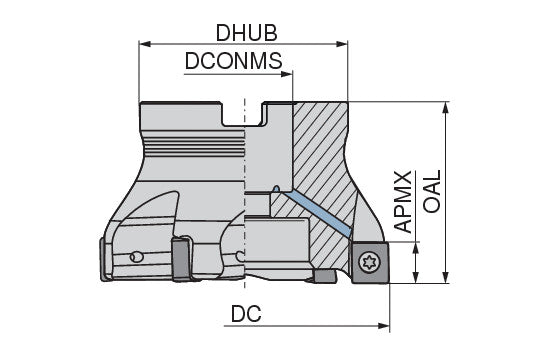

| Name | Ceratizit A491.250.R.05-12-A100-200-EF MaxiMill Shell Mill 491-12 5877625105 | |
| EDP # | 0716788 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Cast Iron (Red) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 25.0 oz | 698 g |
| Cutting diameter / DC | 2.5000" | 63.500 mm |
| Depth of cut maximum / APMX | 0.3150" | 8.001 mm |
| Face mounted insert count / ZNF | 5 | |
| Overall length / OAL | 2.2500" | 57.150 mm |
| Hub diameter / DHUB | 2.2500" | 57.150 mm |
| Mounting spigot diameter / DCONMS H6 | 1.0000" | 25.400 mm |
| Rotational speed maximum / RPMX | 8500 1/min. | |
| Insert | SNHU 1204 | |
| torque moment | 3.2 Nm | |
| Tool cutting edge angle / KAPR | 90 ° | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
