Description
Ceratizit Article Number: 70805420
Ceratizit Material Number: 12058882
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ECM 02L-2.25D-27 CTWN425 EcoCut Mini 70805420 | |
| EDP # | 0716914 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.1 oz | 3.6 g |

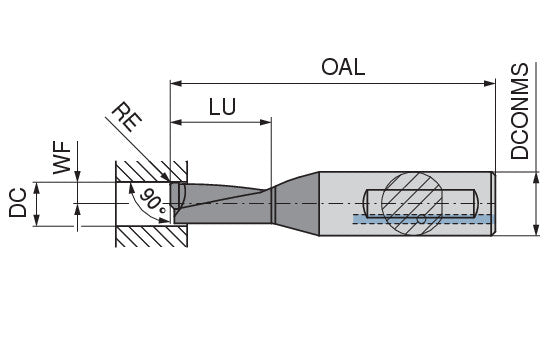

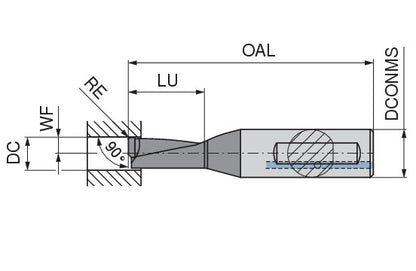

| Minimum bore diameter / DMIN | 0.0787" | 2.000 mm |
| Mounting spigot diameter / DCONMS | 0.1575" | 4.000 mm |
| Overall length / OAL | 1.1024" | 28.000 mm |
| Usable length / LU | 0.1772" | 4.500 mm |
| Functional width / WF | 0.0394" | 1.000 mm |
| Corner radius / RE | 0.0039" | 0.100 mm |
| Version | Left-hand | |
| Coating name / Grade (Ceratizit) / COATN | CTWN425 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
