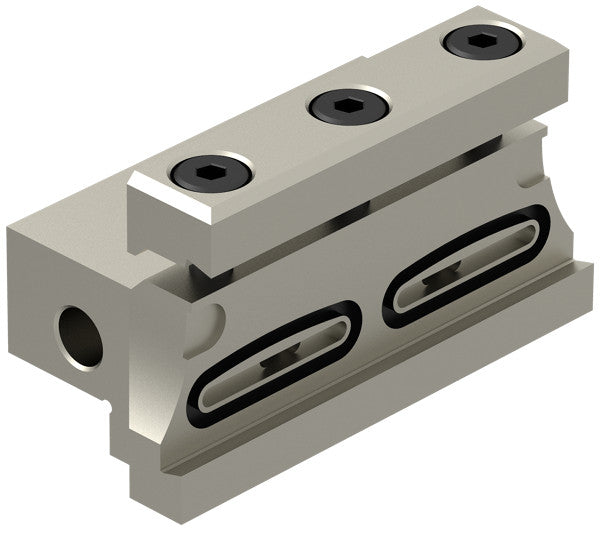

Ceratizit SBN 12-26-DC-E CoreLine Split Clamping Block For Blades 7882907500 (0716955)
Ceratizit SBN 12-26-DC-E CoreLine Split Clamping Block For Blades 7882907500 (0716955)
Couldn't load pickup availability
Ceratizit Article Number: 7882907500
Ceratizit Material Number: 12063236
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SBN 12-26-DC-E CoreLine Split Clamping Block For Blades 7882907500 | |
| EDP # | 0716955 | |
| Weight (1 pc.) | 18.0 oz | 510 g |
| Shank height / H | 0.7500" | 19.050 mm |
| Functional height / HF | 1.0240" | 26.010 mm |
| Overall height / OAH | 1.6900" | 42.930 mm |
| Shank length / LS | 0.7000" | 17.780 mm |
| Overall length / OAL | 1.4874" | 37.780 mm |
| Overall width / OAW | 3.2300" | 82.040 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
