Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 76134728
Ceratizit Material Number: 12066966
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

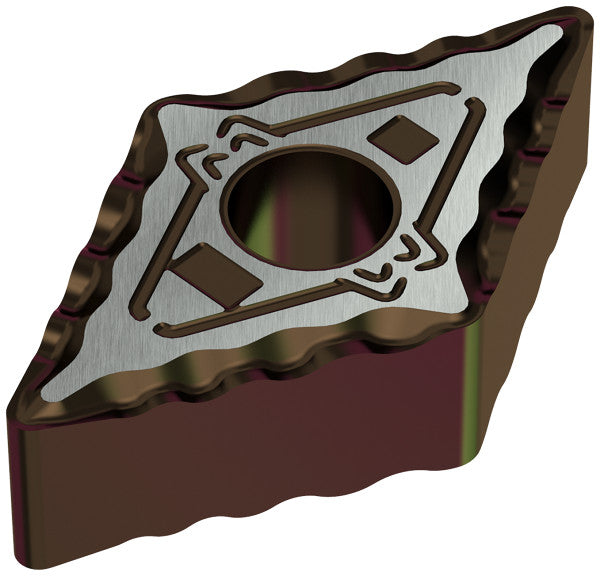

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit DNMG 150604EN-F50 CTCP135 76134728 | |
| EDP # | 0716965 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 14.5 g |
| designation | 150604EN | |
| Corner radius / RE | 0.0157' | 0.400 mm |
| Cutting edge length / L | 0.6102' | 15.500 mm |
| Insert thickness / S | 0.2500' | 6.350 mm |
| Fixing hole diameter / D1 | 0.2031' | 5.160 mm |
| Inscribed circle diameter / IC | 0.5000' | 12.700 mm |
| Chip breaker (Ceratizit) / CBMD | -F50 | |
| Coating name / Grade (Ceratizit) / COATN | CTCP135 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
