Description
Ceratizit Article Number: 70820032
Ceratizit Material Number: 12078151
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

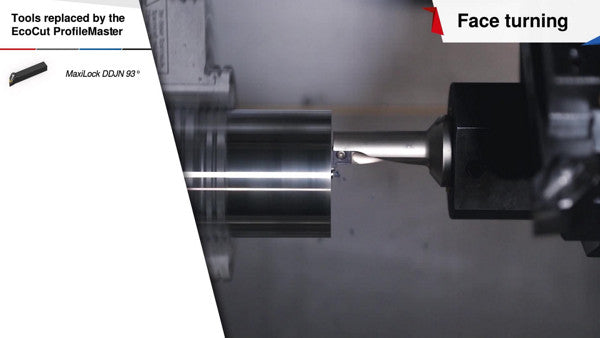

| Name | Ceratizit PMC 32R-1.5D EcoCut Drilling, Turning And Grooving Tool ProfileMaster 1,5xD 70820032 | |
| EDP # | 0717044 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 59.0 oz | 1676 g |
| Product-Carbon-Footprint | B | |
| Mounting spigot diameter / DCONMS | 1.5748" | 40.000 mm |
| Overall length / OAL | 7.8740" | 200.000 mm |
| Usable length / LU | 1.8898" | 48.000 mm |
| Functional width / WF | 0.6299" | 16.000 mm |
| L1 | 8.0433" | 204.300 mm |
| L3 | 2.0591" | 52.300 mm |
| F | 0.4606" | 11.700 mm |
| torque moment | 5 Nm | |
| Insert | PM 32R/L | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
