Description
Ceratizit Article Number: 51101362
Ceratizit Material Number: 12083807
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SNHU 120412FR-F10 CTWN215 51101362 | |
| EDP # | 0717072 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 0.3 oz | 7.6 g |

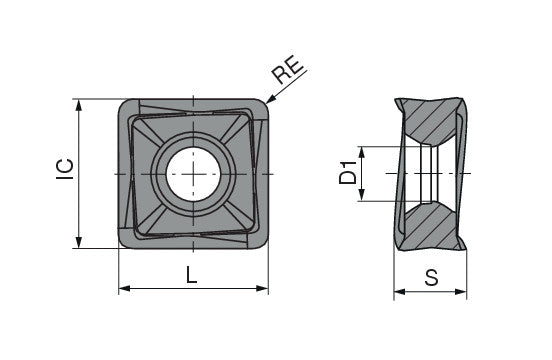

| designation | 120412FR | |
| Corner radius / RE | 0.0472" | 1.200 mm |
| Inscribed circle diameter / IC | 0.4803" | 12.200 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Cutting edge length / L | 0.4803" | 12.200 mm |
| Trailing edge length / BS | 0.0669" | 1.700 mm |
| Insert thickness / S | 0.1969" | 5.000 mm |
| Clearance angle major / AN | 6.5 ° | |
| Coating name / Grade (Ceratizit) / COATN | CTWN215 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
