Description
Ceratizit Article Number: 51101370
Ceratizit Material Number: 12083822
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

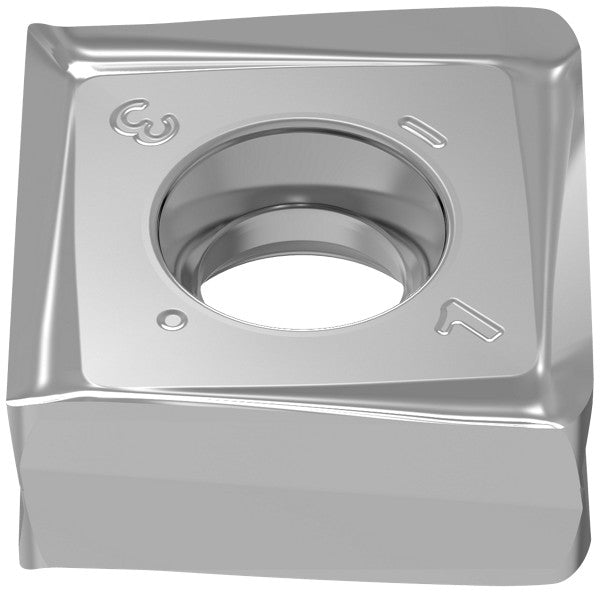

| Name | Ceratizit SNHU 120420FR-F10 CTWN215 CoreLine Carbide Milling indexable Insert 51101370 | |
| EDP # | 0717074 | |
| Weight (1 pc.) | 0.3 oz | 9.0 g |
| designation | 120420FR | |

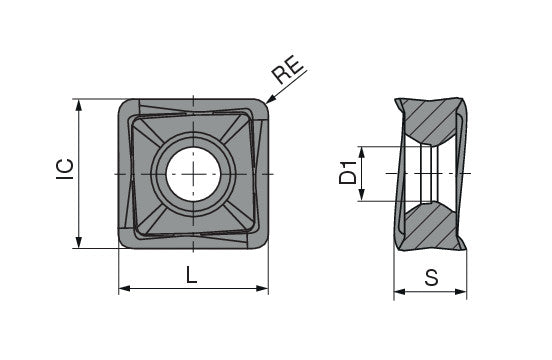

| Corner radius / RE | 0.0787" | 2.000 mm |
| Inscribed circle diameter / IC | 0.4803" | 12.200 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Cutting edge length / L | 0.4803" | 12.200 mm |
| Trailing edge length / BS | 0.0354" | 0.900 mm |
| Insert thickness / S | 0.1969" | 5.000 mm |
| Clearance angle major / AN | 6.5 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
