Description
Ceratizit Article Number: 7422102000
Ceratizit Material Number: 12123630
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

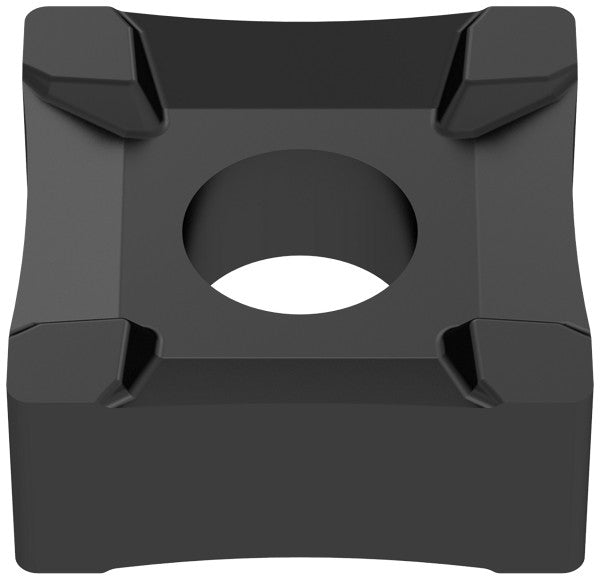

| Name | Ceratizit SNMG 1907-R90 CTCM135 7422102000 | |
| EDP # | 0717392 | |
| Weight (1 pc.) | 1.0 oz | 27.8 g |
| designation | 1907-R90 | |

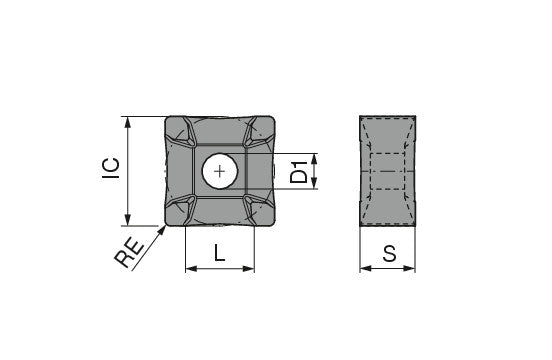

| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.7500" | 19.050 mm |
| Insert thickness / S | 0.3126" | 7.940 mm |
| Fixing hole diameter / D1 | 0.3126" | 7.940 mm |
| Inscribed circle diameter / IC | 0.7500" | 19.050 mm |
| Cutting edge major radius / CEMR | 3.5433" | 90.000 mm |
| Coating name / Grade (Ceratizit) / COATN | CTCM135 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
