Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 70357052
Ceratizit Material Number: 12155535
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

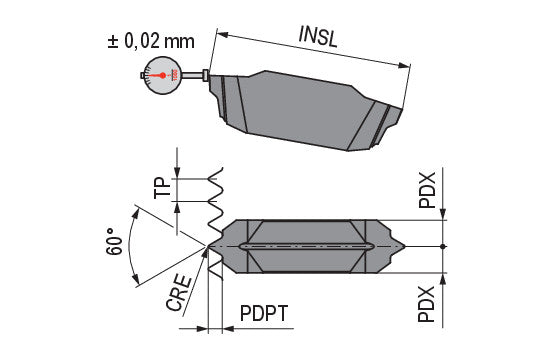

| Properties | ||
|---|---|---|
| Name | Ceratizit TC16-3 E 4.0 ISO CTPP520 Threading Inserts Full Profile External Thread 60° 70357052 | |
| EDP # | 0717446 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 0.2 oz | 4.6 g |
| Thread pitch / TP | 0.1575' | 4.000 mm |
| Profile depth insert / PDPT | 0.0996' | 2.530 mm |
| Profile distance ex / PDX | 0.1220' | 3.100 mm |
| Spot radius / CRE | 0.0197' | 0.500 mm |
| Size | TC 16-3 .. | |
| Insert length / INSL | 0.6299' | 16.000 mm |
| Coating name / Grade (Ceratizit) / COATN | CTPP520 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
