Description
Ceratizit Article Number: 70884712
Ceratizit Material Number: 12157054
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

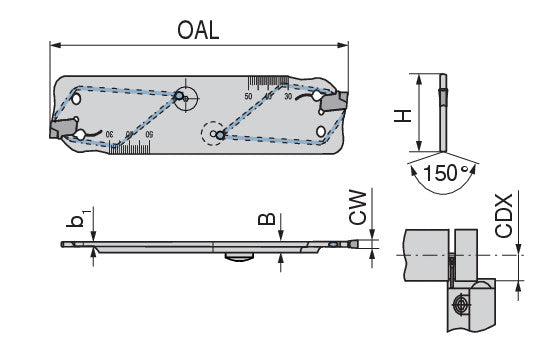

| Name | Ceratizit XLCFL 2602-DC-SX2 CoreLine SX-DC Standard Radial Blade 70884712 | |
| EDP # | 0717482 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Stainless Steel (Yellow) HiTemp Alloy (Orange) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 3.0 oz | 90.0 g |
| Shank height / H | 1.0236" | 26.000 mm |
| Shank width / B | 0.0945" | 2.400 mm |
| Cutting width / CW | 0.0787" | 2.000 mm |
| Overall length / OAL | 4.3307" | 110.000 mm |
| Cutting depth maximum / CDX | 0.9843" | 25.000 mm |
| B1 | 0.0630" | 1.600 mm |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
