Description
Ceratizit Article Number: 70358136
Ceratizit Material Number: 12157548
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

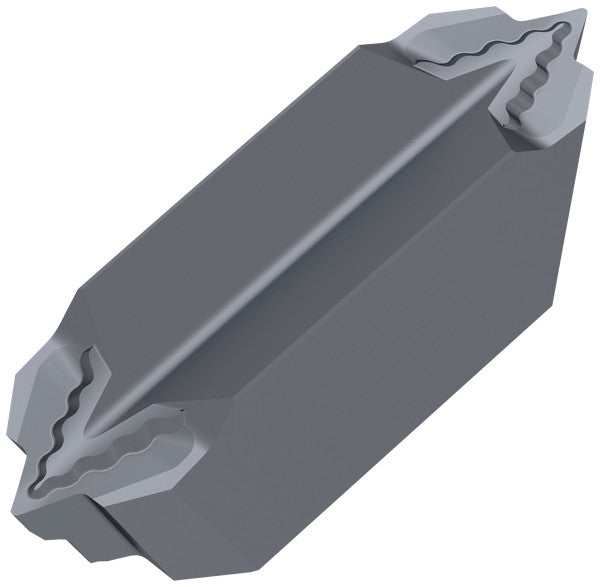

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TC16-2 I 3,0 ISO CTPP535 Threading Inserts Full Profile Internal Thread 60° 70358136 | |
| EDP # | 0717496 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 0.1 oz | 3.1 g |
| Thread pitch / TP | 0.1181" | 3.000 mm |
| Profile depth insert / PDPT | 0.0693" | 1.760 mm |
| Profile distance ex / PDX | 0.0846" | 2.150 mm |
| Spot radius / CRE | 0.0075" | 0.190 mm |
| Size | TC 16-2 .. | |
| Insert length / INSL | 0.6299" | 16.000 mm |
| Coating name / Grade (Ceratizit) / COATN | CTPP535 | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
