Description
Ceratizit Article Number: 5904212506
Ceratizit Material Number: 12180251
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 3DX132-01250.00000.R02.S00000.HA.X104 Chamfer Milling Cutter 60° 5904212506 | |
| EDP # | 0717732 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 0.4 oz | 10.0 g |

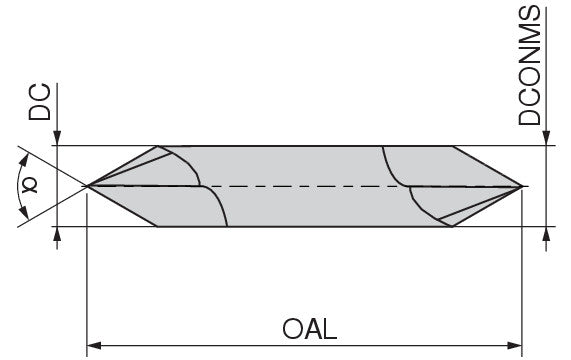

| Cutting diameter / DC -0.0001"/-0.0004" | 0.1250" | 3.175 mm |
| Overall length / OAL | 1.5000" | 38.100 mm |
| Mounting spigot diameter / DCONMS -0.0001"/-0.0004" | 0.1250" | 3.175 mm |
| Peripheral effective cutting edge count / ZEFP | 2 | |
| Cut "A" | 0.0980" | 2.489 mm |
| Profile angle / PRFA | 60 ° | |
| Coating name / Grade (Ceratizit) / COATN | AlTiN | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
