Description
Ceratizit Article Number: 5904118806
Ceratizit Material Number: 12180252
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

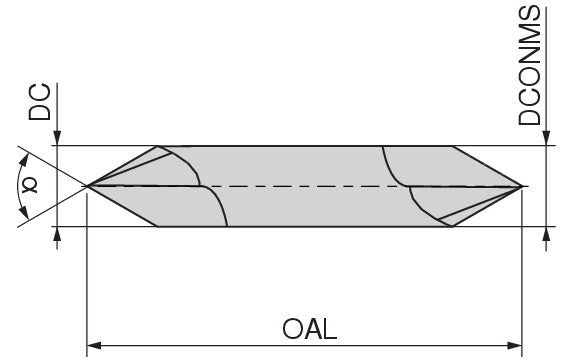

| Name | Ceratizit 3DX132-01875.00000.R02.S00000.HA.B270 CoreLine Chamfer Milling Cutter 60° UN 5904118806 | |
| EDP # | 0717733 | |
| Weight (1 pc.) | 1.0 oz | 20.0 g |
| Cutting diameter / DC -0.0001"/-0.0004" mm | 0.1875" | 4.760 mm |
| Overall length / OAL | 2.0000" | 50.800 mm |
| Mounting spigot diameter / DCONMS -0.0001"/-0.0004" | 0.1875" | 4.760 mm |
| Peripheral effective cutting edge count / ZEFP | 2.0000" | 50.800 mm |
| Cut "A" | 0.1470" | 3.730 mm |
| Profile angle / PRFA | 60 ° | |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
| Minimum Extension (DIN 6535 HA) | 0.8189" - 0.8976" | 20.800 - 22.800 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
