Description
Ceratizit Article Number: 5905562620
Ceratizit Material Number: 12180700
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 3DX157-06250.12500.R04.R03125.HA.X104 Ball Nosed Cutter 5905562620 | |
| EDP # | 0717862 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 13.0 oz | 380 g |

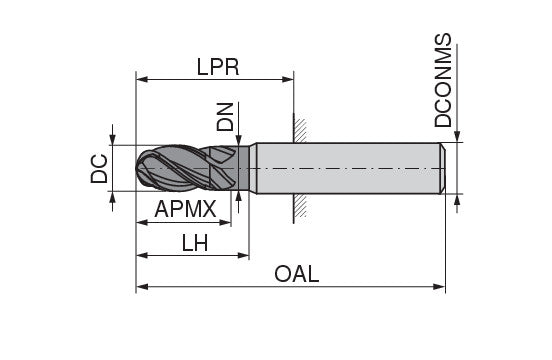

| Cutting diameter / DC +0.000/-0.002 | 0.6250" | 15.875 mm |
| Depth of cut maximum / APMX | 1.2500" | 31.750 mm |
| Neck Diameter / DN | 0.6000" | 15.240 mm |
| Head length / LH | 3.3750" | 85.725 mm |
| Protruding length / LPR | 4.0315" | 102.400 mm |
| Overall length / OAL | 6.0000" | 152.400 mm |
| Mounting spigot diameter / DCONMS -0.0001 / -0.0004 | 0.6250" | 15.875 mm |
| Peripheral effective cutting edge count / ZEFP | 4 | |
| Corner radius / RE | 0.3125" | 7.938 mm |
| Coating name / Grade (Ceratizit) / COATN | AlTiN | |
Suitable Materials:
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
