Description
Ceratizit Article Number: 51109470
Ceratizit Material Number: 12217499
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

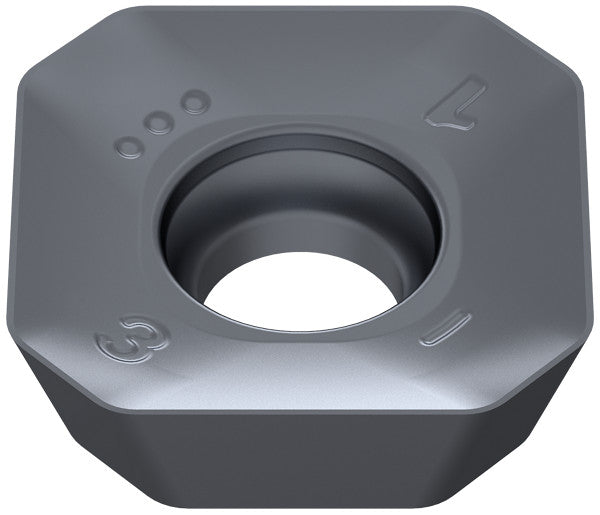

| Name | Ceratizit SDHT 0903AESN-F50 CTPM245 CoreLine Carbide Milling indexable Insert 51109470 | |
| EDP # | 0718187 | |
| Weight (1 pc.) | 0.1 oz | 4.0 g |
| designation | 0903AESN | |

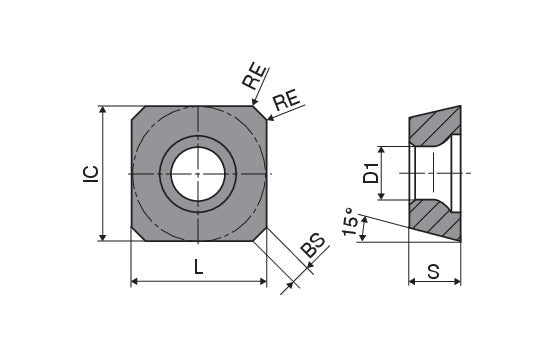

| Corner radius / RE | 0.0394" | 1.000 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| Fixing hole diameter / D1 | 0.1339" | 3.400 mm |
| Cutting edge length / L | 0.3748" | 9.520 mm |
| Trailing edge length / BS | 0.0661" | 1.680 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Insert length / INSL | 0.4331" | 11.000 mm |
| Clearance angle major / AN | 15 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
